MADE IN AMERICA

Đặc điểm

• We use an adhesive that is resistant to copper corrosion.
• Heat curing will create a stronger bond.

Ứng dụng

• For fixing, bundling, and insulating coils in motors and transformers.
• For insulation and protection of heat-resistant electrical wires

Thông số chi tiết

• Flame retardant (UL510)
• Adhesive strength: 4.4 N/10mm
• Tensile strength: 310 N/10mm
• Operating temperature range: 200°C
• Dielectric breakdown strength: 3kV
• Continuous operating temperature: 180°C
• Color: White
• Width (mm): 19
• Length (m): 20
• Thickness (mm): 0.18
• Adhesive strength (N/10mm): 4.4
• Tensile strength (N/10mm): 310
• Operating temperature range (°C): 200
• Applicable standards: UL (File E17385) MIL-1-19166C
• Dielectric breakdown strength (kV/mm): 3
• Core size (mm): 35
• Maximum tape outer diameter (mm): 110

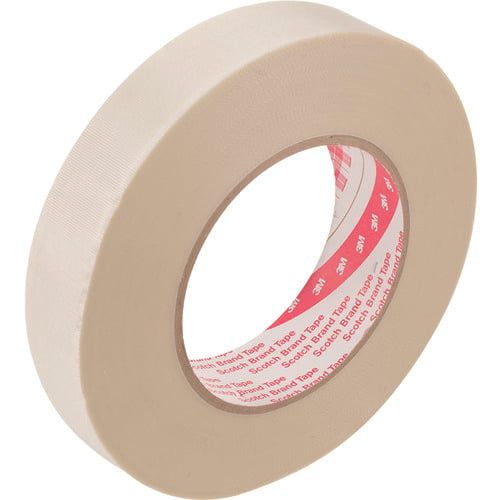

3M 69 19X20
