MADE IN AMERICA

Đặc điểm

• It has good compatibility with electrical insulating resins and varnishes.
• We use an adhesive that is resistant to copper corrosion.
• It has excellent solvent resistance.

Ứng dụng

• For fixing, bundling, and insulating coils in motors and transformers.
• Application to uneven surfaces
• ・For bundling purposes

Thông số chi tiết

• Adhesive strength: 3.3 N/10mm
• Tensile strength: 260 N/10mm
• Operating temperature range: 155°C
• Dielectric breakdown strength: 3 kV
• Continuous operating temperature: 155°C
• Color: White
• Width (mm): 50
• Length (m): 20
• Thickness (mm): 0.18
• Adhesive strength (N/10mm): 3.3
• Tensile strength (N/10mm): 260
• Operating temperature range (°C): 155
• Compliance standard: UL (File E17385)
• Dielectric breakdown strength (kV/mm): 3
• Core size (mm): 35
• Maximum tape outer diameter (mm): 110

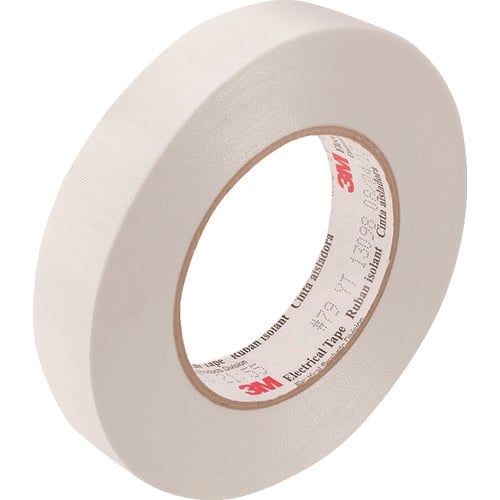

3M 79 50X20
