MADE IN AMERICA

Đặc điểm

• It is a flexible electrical insulating filler.
• It is thick and can effectively form an insulating layer.
• It has excellent aging resistance and does not become brittle after fusion due to drying, softening, or hardening.
• It comes with a liner (with separator).

Ứng dụng

• For filling gaps in electrical wire and cable connections.
• Waterproofing of the grounding wire outlet.
• Insulation and waterproofing of low-voltage connections.

Thông số chi tiết

• Non-adhesive type
• Continuous operating temperature: 80°C
• Dielectric breakdown strength: 22kV/mm
• Color: Black
• Width (mm): 38
• Length (m): 1.5
• Thickness (mm): 3.2
• Dielectric breakdown strength (kV/mm): 22
• Continuous operating temperature (°C): 80
• Insulation resistance/volume resistivity: 1 × 10¹² Ω･m or more
• Elongation (%): 1000 or more
• Rated voltage (V): 600

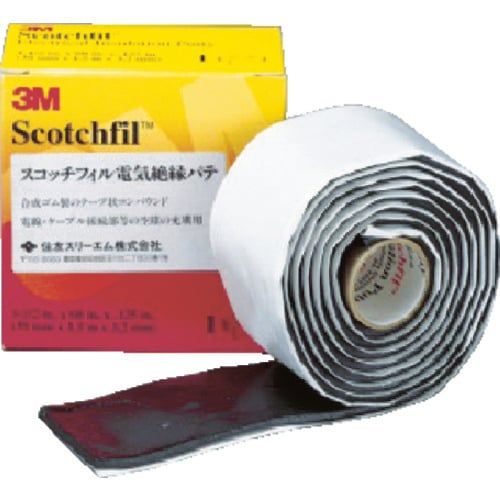

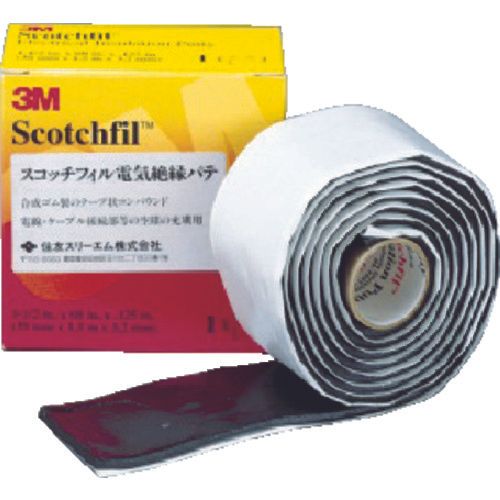

3M S/FIL
