Đặc điểm

• Temflex 180 exhibits high adhesive strength to a variety of substrates.
• The base material is soft and flexible, and conforms well to uneven surfaces even in cold temperatures.
• It has excellent cold resistance; its adhesive strength does not decrease even at -10℃, and the base material does not harden even in cold winter weather, resulting in good workability.
• Thanks to its highly adhesive adhesive, it sticks firmly.
• It can be cut by hand.
• It comes in nine different colors, making it convenient for color-coding purposes.

Ứng dụng

• Electrical wiring work.
• Bundling, securing, and identifying various types of wiring and piping.
• Wiring, piping, wire harness bundling, securing, color-coding, etc.
• Protects the connection from UV rays (for outdoor use)
• For insulating coatings on internal wiring of machinery, etc.

Thông số chi tiết

• Lead-free type (no intentional lead content)
• 1 pack: 10 rolls
• Color: Gray
• Width (mm): 19
• Length (m): 20
• Thickness (mm): 0.2
• Tape cutting conditions: Can be cut by hand
• Operating temperature range (°C): -10 to 80
• Adhesive strength (N/10mm): 1.6
• Tensile strength (N/10mm): 25
• Applicable standard: JIS C 2336
• Dielectric breakdown strength (kV/mm): 49
• Rated voltage (V): 600
• Elongation: 175%
• Insulation resistance/volume resistivity (MΩ･m): 1.0 × 1,000,000 or more
• JIS standard compliant (JIS C 2336 Class A)
• RoHS Directive (10 substances) compliant

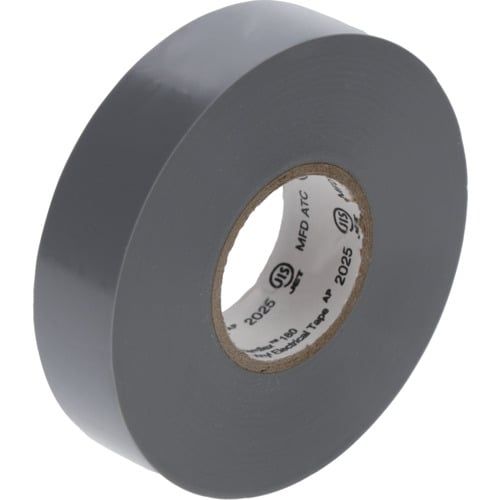

3M 180 GRA 20 10P
