MADE IN SOUTH KOREA

Đặc điểm

• It can be used to secure heat-resistant components in all fields.
• Because it is a double-sided tape composed solely of adhesive, it adheres well to the surface it is attached to and offers excellent workability.
• This is a highly flame-retardant acrylic-based thermal conductive tape.
• It possesses high adhesive strength, making it a viable alternative to screw fastening methods.
• Because it uses an acrylic-based adhesive, there is no need to worry about adverse effects from siloxane gas.
• Due to its excellent thermal conductivity and adhesive strength, it can be used as a fixing tape for thermal protection components in all fields.
• Because it contains a base material, it has excellent processability.
• Because it is made of a non-silicone material, there is no need to worry about contact failures caused by siloxane gas.
• This product boasts excellent flexibility and thermal conductivity, along with a strong adhesive strength of 20N/10mm.

Ứng dụng

• Bonding heat sinks and heat dissipators to semiconductors and electronic components.
• Heatsink for LED board, fixed to metal components.
• For securing electronic components to heat sinks as a heat dissipation measure for CPUs, LED boards, etc.

Thông số chi tiết

• Adhesion: 8.0 N/10 mm
• Thermal conductivity: 1.5 W/mK
• Specific gravity (25°C): 1.6
• Dielectric breakdown strength: 15 kV/mm
• 90-degree peel strength (against stainless steel plate): 8 N/mm (0.2 mm thick)
• Shear strength: 104 N/cm² (0.2 mm thick)
• Color: White
• Width (mm): 100
• Thickness (mm): 0.2
• Length (mm): 100

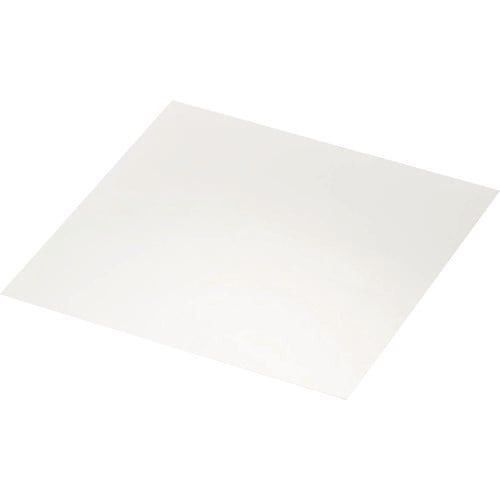

3M 8926-02 100X100 1P
