Đặc điểm

• It exhibits high adhesive strength to a variety of substrates.
• The base material is soft and flexible, and conforms well to uneven surfaces even in cold temperatures.
• This is a lead-free type.
• It has excellent cold resistance; its adhesive strength does not decrease even at -10℃, and the base material does not harden even in cold winter weather, resulting in good workability.
• Thanks to its highly adhesive adhesive, it sticks firmly.
• It can be cut by hand.
• It comes in 10 color variations, making it convenient for color-coding purposes. (15 colors available for the 19mm x 10m size only.)
• This product is lead-free, so you can use it with peace of mind (no intentional lead inclusion).

Ứng dụng

• Electrical wiring work.
• Bundling, securing, and identifying various types of wiring and piping.
• Wiring, piping, wire harness bundling, securing, color-coding, etc.
• Protects the connection from UV rays (for outdoor use)
• For insulating coatings on internal wiring of machinery, etc.

Thông số chi tiết

• Adhesive strength: 1.6N/10mm (steel)
• Tensile strength: 25N/10mm
• Operating temperature range: -10 to 80℃
• JIS standard compliant (JIS C 2336)
• Color: Skin tone (beige)
• Width (mm): 19
• Length (m): 10
• Thickness (mm): 0.2
• Operating temperature range (℃): -10 to 80
• Adhesive strength (N/10mm): 1.6
• Tensile strength (N/10mm): 25
• Compliant standard: JIS C 2336
• Dielectric breakdown strength (kV/mm): 49
• Rated voltage (V): 600
• Elongation: 175%
• Insulation resistance/Volume resistivity (MΩ･m): 1.0 × 1,000,000 or more
• JIS standard compliant (JIS C 2336 Class A)
• RoHS Directive (10 substances) compliant

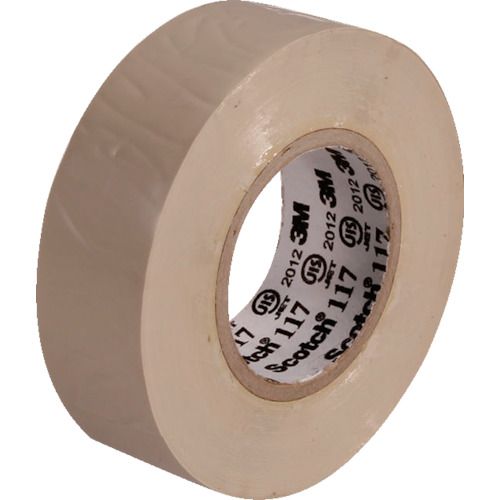

3M 117 BEI 10 10P
