MADE IN AMERICA

Đặc điểm

• This is a lead-free type.
• It has excellent colorfastness against ultraviolet light.
• It has excellent electrical insulation, heat resistance, weather resistance, and flame retardancy. The operating temperature range is 0 to 105°C.
• It is flexible and conforms very well to uneven surfaces, resulting in a clean finish.
• It is certified to UL510 and CSA standards and also has flame-retardant properties.
• It has high weather resistance and can be used outdoors for extended periods.
• It can be cut by hand.
• This product is lead-free, so you can use it with peace of mind (no intentional lead inclusion).
• It comes in nine different colors, making it convenient for color-coding purposes.

Ứng dụng

• Primary electrical insulation up to 600V in electrical wiring work.
• Applications include bundling wire harnesses for manufacturing equipment, home appliances, generators, etc.
• For bundling internal wire harnesses in equipment intended for export overseas.
• Color-coding applications for wire harnesses.
• For electrical work in high-temperature rooms.
• Uses in disaster prevention construction.

Thông số chi tiết

• Adhesive strength: 2.2 N/10mm
• Tensile strength: 30 N/10mm
• Operating temperature range: -10 to 105°C
• UL and CSA compliant
• 1 pack = 5 rolls
• Colors: Blue, Green, Red, Yellow, White (5
• colors ) Width (mm): 12.7
• Length (m): 6.09
• Thickness (mm): 0.18
• Operating temperature range (°C): -10 to 105
• Adhesive strength (N/10mm): 2.2
• Tensile strength (N/10mm): 26
• Compliance standards: UL and CSA
• Dielectric breakdown strength (kV/mm): 45
• Rated voltage (V): 600
• Elongation: 250%
• Insulation resistance/Volume resistivity: 1.0 × 1,000,000 Ω･m or more

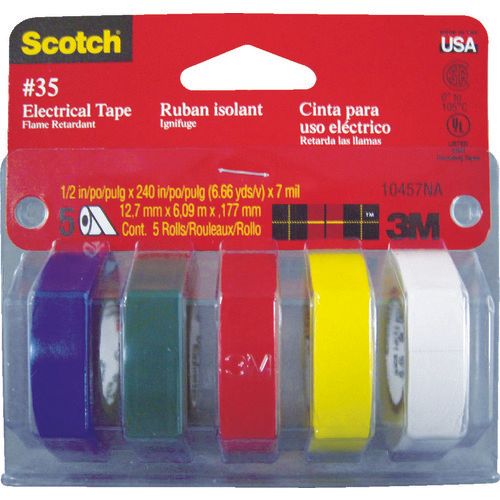

3M 35 MC
