MADE IN JAPAN

Đặc điểm

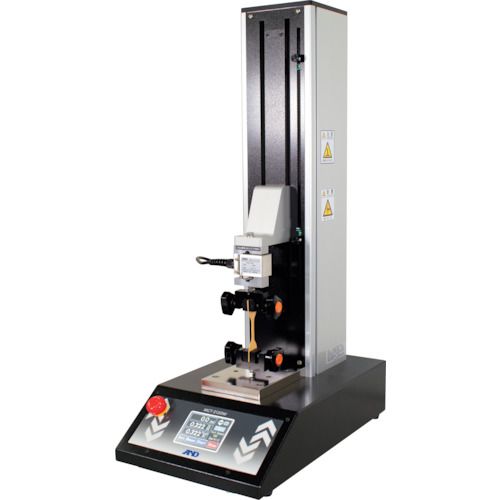

• This is a high-performance, low-test-force (test-force display resolution: 0.001N) benchtop tensile and compression tester that allows you to see the "strength" of a substance.
• The color touch panel offers excellent visibility and is easy to operate.
• It comes with a high-precision load cell and can be used immediately after powering it on.
• The test speed can be easily set digitally.
• Displacement display is included as a standard feature.
• PC import software is included as standard.
• You can also use the jigs (attachments) that you have been using with force gauges and push-pull gauges.
• *When using an M6 screw type and an M6 male screw adapter.
• It can be connected to the AD-8126 mini printer (sold separately) to print out the maximum load and displacement.
• It Đặc điểm a space-saving design suitable for use on a tabletop.

Note

• *This product is not waterproof.

Thông số chi tiết

• Crosshead stroke (mm): 370
• Width (mm): 250
• Depth (mm): 405
• Height (mm): 711
• Power supply (V): AC90-240V 1Φ 50/60Hz
• Maximum
• test force capacity (N): 500
• Crosshead stroke: 370mm
• Effective stroke (when using standard parallel clamping jaws): 285mm
• Crosshead speed range: 10-300mm/min: Within ±5% of the set value (no load)
• Crosshead speed and test force capacity: Testing is possible up to the maximum test force capacity in the entire speed range
• Displacement display: 0.00mm (minimum 0.01mm: 0.1mm display for 100mm or more)
• Test force measurement accuracy (when using 500N load cell): 500N-50N: ±0.2% FS, 50N to 5N: ±2% of indicated value, 5N or less: within ±0.1N
• Test force measurement accuracy (when using a 50N load cell): 50N to 5N: ±0.2% FS, 5N to 0.5N: ±2% of indicated value, 0.5N or less: within ±0.01N
• Test force display resolution (when using a 500N load cell): 0.01N (0.1N displayed when exceeding 100N)
• Test force display resolution (when using a 50N load cell): 0.001N (0.01N displayed when exceeding 10N)
• External dimensions/weight: 250(W)×405(D)×711(H)mm/18kg

A&D MCT-2150W
