MADE IN JAPAN

Đặc điểm

• Dust-free paper can also be used.
• It can be connected to A&D balances, platform scales, AD-1691, and other similar products.
• This is a dot-impact method.
• This is an RS-232C input (the connected device must have an RS-232C output).
• An AC adapter is included as standard equipment.
• Only the output from the scale will be printed.
• It does not have Đặc điểm such as date and time, interval settings, or print commands from the printer.
• A connection cable is included as standard (for D-sub 25P, D-Sub 9P, or Din 7P).
• Please specify the model number of the device you will be connecting when placing your order.

Note

• The specifications of the included connection cable vary depending on the device being connected.
• Please specify the model number of the device you wish to connect when placing your order.
• Depending on the connected device, an additional cable may be required.
• Balances and scales without a clock function cannot output GLP/GMP values.
• If GLP/GMP output is required, please use the AD-8127.

Thông số chi tiết

• Character specifications (mm): (5+1) x 8 dots Approx. 1.62 (W) x 2.4 (H)
• Width (mm): 106
• Depth (mm): 180
• Height (mm): 88
• Power supply (V): Dedicated AC adapter (standard included)
• Printing speed: Approx. 2.5 lines/second
• Number of characters per line: 24 characters/line
• Paper width (mm): 58
• Can be connected to A&D balances and scales with RS-232C output (D-Sub9P, D-Sub25P, DIN).

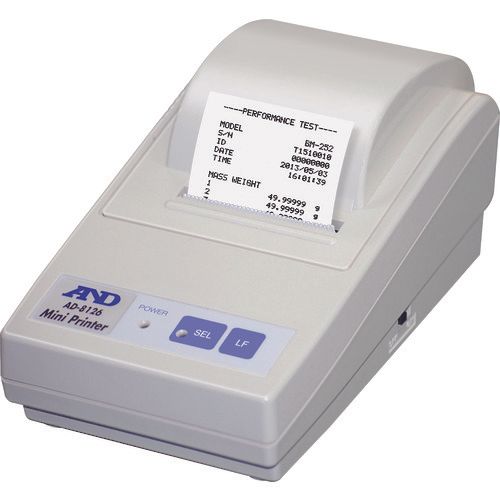

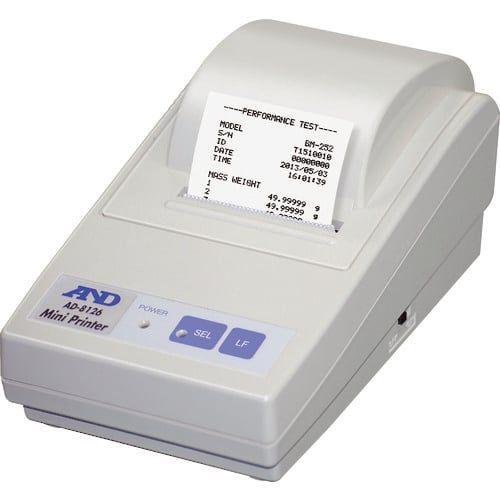

A&D AD-8126
