MADE IN JAPAN

Đặc điểm

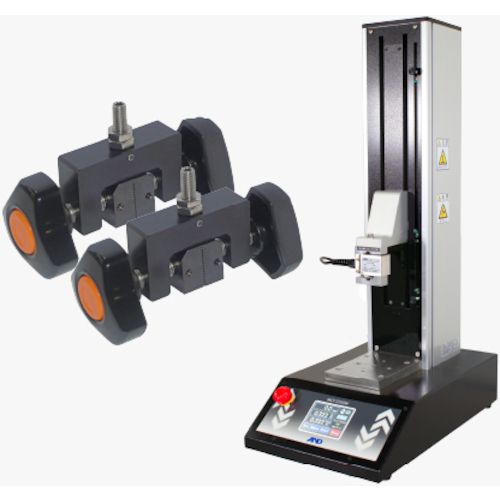

• This is a tensile jig set for a high-performance, low-test-force (test-force display resolution: 0.001N) desktop tensile and compression testing machine that allows you to see the "strength" of the material.
• Two parallel clamping jaws (JM-JFM-500N) for tensile testing are included.
• The color touch panel offers excellent visibility and is easy to operate.
• It comes with a high-precision load cell and can be used immediately after powering it on.
• The test speed can be easily set digitally.
• Displacement display is included as a standard feature.
• PC import software is included as standard.
• You can also use the jigs (attachments) you have been using with force gauges and push-pull gauges. *When using M6 threaded jigs with an M6 male thread adapter.
• It can be connected to the AD-8126 mini printer (sold separately) to print out the maximum load and displacement.

Note

• *This product is not waterproof.
• *Supported OS: Windows XP, Vista Business, 7 Pro, 8/8.1 Pro, 10 Pro, 11 Pro, USB: Ver 2.0 or higher (Please note) Coexistence with Office 2021 64-bit version is not currently supported.

Thông số chi tiết

• Parallel clamping jaws for tensile testing (opening width: 10 mm) with top and bottom attachments
• Width (mm): 250
• Depth (mm): 408
• Height (mm): 711
• Power supply (V): AC90-240V 1Φ 50/60Hz
• Maximum test force capacity (N): 500
• Crosshead stroke (mm): 370
• Effective stroke (when using standard parallel clamping jaws) (mm): 285
• Crosshead speed range: 10-300 mm/min: within ±5% of the set value (no load)
• Crosshead speed and test force capacity: Testing is possible up to the maximum test force capacity in the entire speed range
• Displacement display: 0.00 mm (minimum 0.1 mm)
• Test force measurement accuracy (when using a 500N load cell): 500N-50N: ±0.2% FS, 50N to 5N: ±2% of indicated value, 5N or less: within ±0.1N
• Test force measurement accuracy (when using a 50N load cell): 50N to 5N: ±0.2% FS, 5N to 0.5N: ±2% of indicated value, 0.5N or less: within ±0.01N
• Test force display resolution (when using a 500N load cell): 0.01N (0.1N displayed when exceeding 100N)
• Test force display resolution (when using a 50N load cell): 0.001N (0.01N displayed when exceeding 10N)
• Included software: MSAT-Lite
• Main unit dimensions/weight: 250(W)×408(D)×711(H)mm/18kg

A&D MCT-2150W-T2
