MADE IN JAPAN

Đặc điểm

• Because it is completely dry, no moisture comes out of the discharge side.
• It achieves high achievable pressures and delivers stable performance over a wide pressure range.
• With its three-lobe roots design and perfect dynamic balance, it produces low noise and low vibration.
• Oil mist will not be mixed into or discharged into the product.

Ứng dụng

• For vacuum drying of water-based and hydrocarbon-based cleaning machines.
• For vacuum packaging food.
• For adsorption, dehydration, and degassing.
• For resin molding and extrusion machines.

Thông số chi tiết

• Totally enclosed, fan-cooled indoor motor without thermal protector, IE3
• Totally enclosed, fan-cooled indoor motor
• without thermal protector, IE3
• water-cooled,
• custom-made for different voltages (available from a single unit
• ). Cooling water volume (l/min): 2,
• Exhaust speed (L/min) 50/60Hz: 5230,
• Ultimate pressure (Pa): 20,
• Intake port diameter (mm): 80
• , Power supply (V): Three-phase 200, 4P,
• Overall width (mm): 912,
• Overall length (mm): 949,
• Overall height (mm): 1006,
• Noise level (dB): 83,
• Dimensions (mm): 912 x 949 x 1006

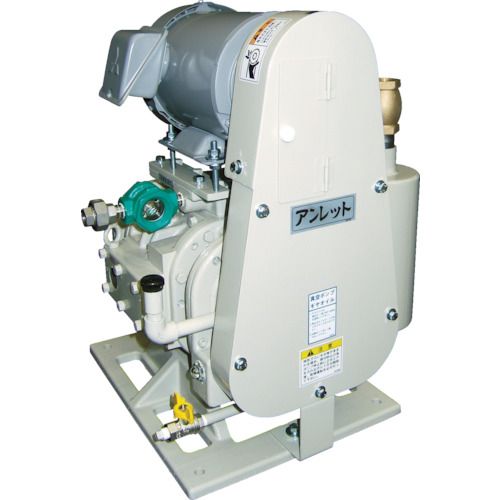

ANLET CT4-300LE-IE3
