MADE IN JAPAN

Đặc điểm

• This is a manual pump capable of transferring various oils up to 5000 cP.
• The flange is a threaded, oval-shaped flange.
• It's also recommended for supplying fuel when there's no power source, and for use in emergencies.
• It can be lifted up to the equivalent of the 5th floor of a building (15m).
• Absorbs 6m of water (2.5m when dry)

Ứng dụng

• For injecting lubricating oil into machinery and equipment on ships, and for transferring hydraulic fluid.

Thông số chi tiết

• Usable viscosity: 5000 cP or less.
• Discharge height: 15m, Suction height: 6m (2.5m when dry).
• Since the suction and discharge ports are fixed, it can only be installed in one direction. (Cannot be used horizontally)
• . Discharge volume (cc/stroke): 175.
• Head (m): Suction 6 (2.5m when dry), Discharge height 15.
• Connection port diameter: 20A.
• Face-to-face dimension (mm): 180.
• Connection part shape: Rhombus flange.
• Dimensions (mm) A: 203,
• Dimensions (mm) B: 126,
• Dimensions (mm) D: 330

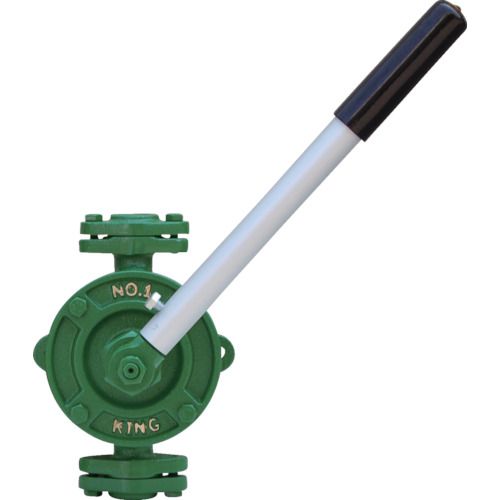

AQUA KING NO.1
