Đặc điểm

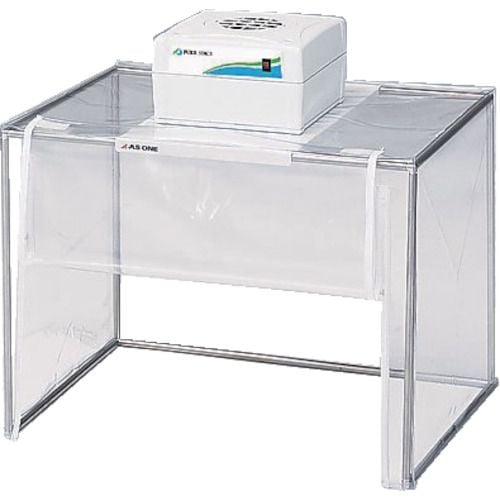

• External odors (organic solvents, etc.) are deodorized using activated carbon fibers, and purified air is supplied to the inside of the booth.
• Because fibrous activated carbon has a larger contact surface area with pollutants than granular activated carbon, it can adsorb odors more quickly.

Note

• Includes the fan unit section.

Thông số chi tiết

• Airflow: Approx. 1 m³/min;
• Air velocity: Approx. 0.5 m/s
• ; Filter: Non-woven fabric pre-filter; Activated carbon fiber filter
• sheet: Soft PVC (polyvinyl chloride), 0.5 mm thick
• ; Pipe: Stainless steel (SUS304), φ13 mm
• ; Motor: AC motor;
• Power supply: AC100V 50/60Hz 52/49W ;
• Power cord: 1.8 m long with 2P plug;
• Power supply (V): AC100V 50/60Hz 52/49W

AS 3-2021-11
