MADE IN JAPAN

Đặc điểm

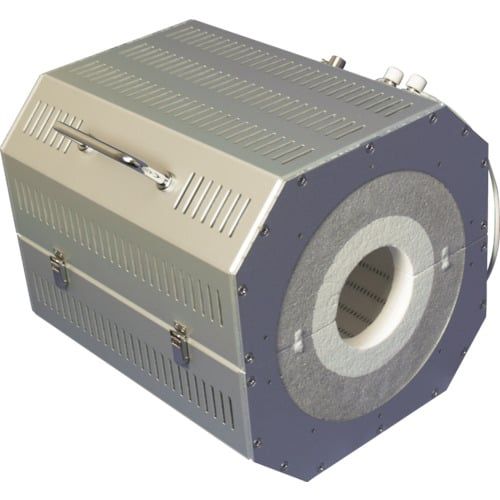

• This lightweight and compact tubular furnace utilizes cutting-edge ceramic molding technology.
• Because it has excellent heat retention, it requires a small heater capacity and has very good temperature distribution.
• The heater is designed to prevent it from sagging, so it can be used vertically as well.
• The furnace body was molded in two sections and designed to be openable and closable.

Ứng dụng

• Hardening and annealing of metal parts.

Thông số chi tiết

• Maximum limit temperature: 1200℃
• Operating temperature range: Room temperature to approximately 1100℃
• Heating time: Approximately 25 minutes to 1100℃
• Heater: Kanthal wire A-1
• Furnace diameter (mm): 81
• Power supply (V): Single phase 100
• Body dimensions (mm) Depth: 260
• Body dimensions (mm) Height: 260
• Body dimensions (mm) Width: 300
• Power consumption (W): 1200
• Effective internal dimensions (mm): Φ110 × 260

ASH ARF-80KC
