MADE IN SWEDEN

Đặc điểm

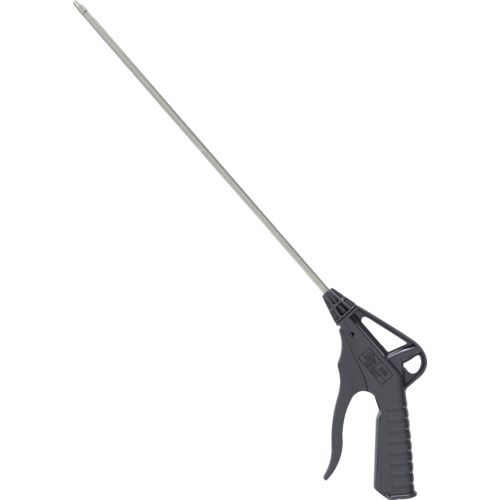

• This air blow gun is made of food-grade plastic, so it can be used safely in beverage and food manufacturing processes.
• All blowgun components are detectable by metal detectors and X-ray inspection systems.
• The large flow rate allows for effective work.
• The stainless steel AISI 303 (1.4305) valves are corrosion and high temperature resistant and the lubricant is food grade, so there is no risk of contamination when they come into contact with food.

Ứng dụng

• Particularly used in food manufacturing processes, cleaning, drying, cooling and draining by air blowing.

Thông số chi tiết

• Maximum operating pressure: 1.6 MPa
• Operating temperature range: -20 to 60°C
• Made of food-grade plastic in accordance with Reg. (EC) No. 1935/2004 and FDA CFR 21.170-199 Compliant with
• GFSI (Global Food Safety Initiative) approved food safety standards such as HACCP, IFS, BRC, and FSSC 22000
• Seal: Food grade (in accordance with Reg. (EC) No. 1935/2004 and FDA 21.177.2600)
• Nozzle length (mm): 320
• Nozzle diameter (mm): 3.5
• Nozzle mounting port: M14 x 1
• Air mounting port: Rc1/4
• Overall length (mm): 496
• Color: Blue-gray
• Nozzle type: Fixed
• Operating air pressure (MPa): ● Operating fluid: Air ● Air consumption (L/min): 380
• Operating fluid: Air
• Air consumption (L/min): 380

CEJN 11-208-7300
