MADE IN SWEDEN

Đặc điểm

• This is an ultra-durable coupling that can withstand pressure fluctuations.
• It prevents environmental pollution by eliminating liquid leakage during separation.
• It is possible to disconnect and connect the hydraulic circuit even when there is residual pressure inside.

Ứng dụng

• Suitable for applications requiring high durability and significant pressure fluctuations, such as construction and demolition machinery.

Thông số chi tiết

• Mating connector size: UN 1 1/16-12 (3/4 SAE) male thread
• Operating temperature range (°C): -30 to 100
• Working fluid: Hydraulic oil
• Minimum burst pressure (MPa): 168 when connected, 105 when disconnected
• Rated flow rate (L/min): 93

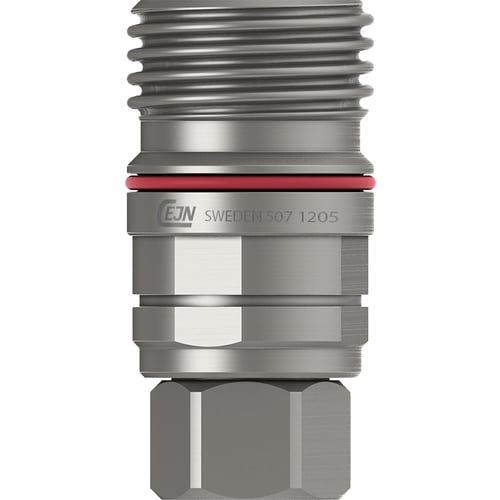

CEJN 10-507-1607
