MADE IN TAIWAN SWEDEN

Đặc điểm

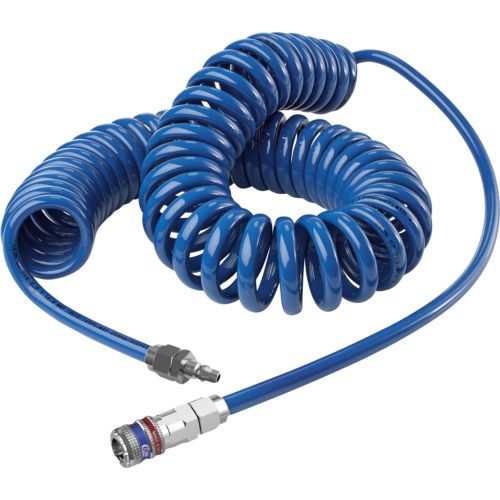

• The coupling has a pressure relief function (purge function) that automatically removes residual pressure, allowing for safe removal.
• This polyurethane hose offers excellent durability and flexibility.
• It is already assembled and ready to use.

Ứng dụng

• For pneumatic tools and air-powered work in repair shops, paint shops, and general manufacturing plants.

Thông số chi tiết

• Connection fitting: Coupling/nipple with residual pressure relief function (Series 315)
• Color: Blue
• Outer diameter (mm): 8 Inner
• diameter (mm): 5
• Operating range (m): 8
• Total length (mm): 1300
• Coil diameter (mm): 42
• Coil length (mm): 700
• Fluid used: Air
• Hose inner diameter x outer diameter (mm): 5 x 8
• Fluid temperature (°C): -20 to 60
• Operating pressure (MPa): 1.0

CEJN 19-958-9116
