MADE IN JAPAN

Đặc điểm

• The core diameter is a large 3 inches, making it easy to grip.
• This product is equivalent to heat-resistant class H (180°C).
• This is an adhesive tape with excellent heat resistance.
• The shedding of glass fibers has decreased.

Ứng dụng

• Insulation of electrical equipment.
• Temporary fastening and protection under high-temperature conditions.

Thông số chi tiết

• Adhesive strength: 4N/10mm
• Tensile strength: 280N/10mm
• Maximum operating temperature: 200℃
• Breaking voltage: 6kV
• UL510A certified
• Color: White
• Width (mm): 25
• Length (m): 10
• Thickness (mm): 0.2
• Tape cutting conditions: Cutter required for cutting
• Adhesive strength (N/10mm): 4
• Tensile strength (N/10mm): 280
• Adhesive strength (N/25mm): 10

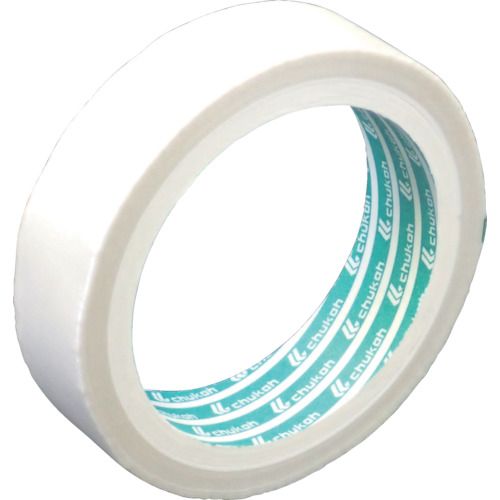

CHUKOH ACH5001FR-25X10
