MADE IN JAPAN

Đặc điểm

• This is an ultra-heat-resistant tape. (Base material heat resistance temperature: 360°C)
• It has excellent electrical insulation properties.

Ứng dụng

• For masking purposes in the soldering process of printed circuit boards.
• Heat-resistant coating, heat-resistant protection.

Thông số chi tiết

• Color: Orange
• Width (mm): 13
• Length (m): 10
• Thickness (mm): 0.06
• Tape Cutting Conditions: Cutter required for cutting
• Adhesive Strength (N/10mm): 2.4
• Tensile Strength (N/10mm): 50
• Operating Temperature Range (°C): -70 to 250
• Adhesive Strength (N/25mm): 6
• Compliance Standards: Flame retardant (UL510A certified)

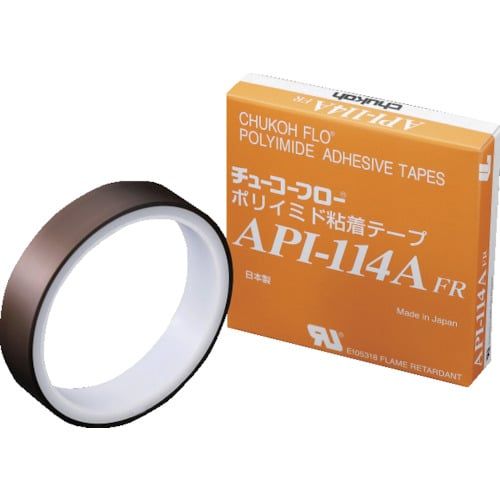

CHUKOH API114A FR-06X13
