Đặc điểm

• By adjusting the sound velocity setting, you can measure the thickness of various materials, from metals to non-metals (glass, resin, etc.).
• (Example: Steel 1.2-220mm)
• Đặc điểm a backlight for convenient use in dark places.

Ứng dụng

• For measuring the thickness of objects.
• As a non-destructive testing device, it can be used to identify areas of corrosion or damage within the object being measured.

Thông số chi tiết

• Angle: ±(1%rdg+0.1) mm
• Auto power off function: Selectable from 5 minutes, 10 minutes, 30 minutes, or auto power off disabled
• Measurement range (mm): 1.0 to 350 mm (steel)
• Resolution (mm): 0.01 (1 to 99 mm), 0.1 (100 mm and above)
• Measurement range: 1.0 to 350 mm (steel)
• Resolution: 0.01 mm (1 to 99 mm), 0.1 mm (100 mm and above)
• Memory function: Up to 100 entries
• Measurement method: Ultrasonic pulse reflection
• Power supply (V): 72
• Width (mm): 72
• Depth (mm): 37
• Height (mm): 135
• Minimum pipe size (outer diameter, wall thickness): 1.0 to 350 mm (steel)
• Sound velocity measurement range: 1000 to 9999 m/s
• Power supply: 3 x AA batteries
• Battery life: Approximately 12 hours (when using alkaline batteries)
• Operating temperature and humidity: 0 to +40 Storage temperature and humidity: 0 to +40°C, 20 to 80 %
• Operating temperature and humidity: 0 to +40 Storage temperature and humidity: 0 to +40°C, 20 to 80
• %
• RH (non-condensing, battery not included)

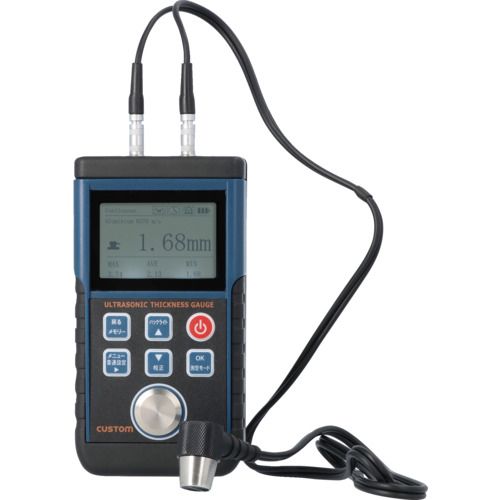

CUSTOM STG-02
