Đặc điểm

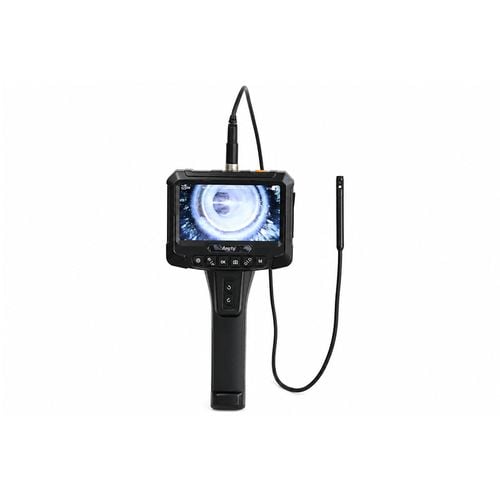

• This is an industrial endoscope equipped with two cameras: one for "direct viewing" and one for "side viewing."
• The side-view camera rotates 350°, allowing for interior wall inspection without bending cables. The shooting screen can be switched between three modes: direct view, side view, and a "dual-screen display" that shows both images side-by-side.
• The large 4.8-inch monitor and 920,000-pixel camera allow you to see even the smallest details clearly.

Ứng dụng

• For inspecting narrow spaces, observing the inside of metal pipes and conduits, checking the threads of female screw holes, etc.

Thông số chi tiết

• Cable length (m): 1
• Camera head diameter (mm): 8.5
• Monitor size (inches): 4.8
• Width (mm): 140
• Depth (mm): 66
• Height (mm): 275
• Camera resolution: 920,000
• Voltage (V): 3.7
• Capacity (Ah): 2
• Insertion part outer diameter (mm): 8.5
• Effective insertion part length (m): 1
• Model: Non-movable tip, with side-view camera
• Monitor (inches): 4.8
• Monitor resolution: 854 x 452
• Image sensor: 1/9 CMOS
• camera resolution: Approx. 920,000 pixels
• Front outer diameter (mm): 8.5
• Camera cable effective length (m): Approx. 1.0
• Focal length (mm): Approx. 40-100 (direct view) / Approx. 40-80 (side view)
• Field of view (°): Approx. 70
• Light source: White LED x 8 (direct view) / White LED x 1 (side view)
• Dimming: OFF + 3 levels
• Still image size: 1920 x 1080 / 1280 x 720 / 640 x 480
• Video size: 1280 x 720 / 640 x 480
• Digital zoom: 1.0x / 1.3x / 1.5x
• Cable: Interlock cable (shape retention)
• Storage medium: microSD card (up to 64GB)
• Battery (built-in): 3.7V 2000mAh
• Usage time (hours): Approx. 2
• Charging time (hours): Approx. 3
• Operating temperature (°C): 0-45
• Weight (g): Approx. 305 *Excluding camera cable
• Dimensions (mm): Approx. 140 x 66 x 275 *Excluding camera cable
• Waterproof and dustproof IP65 *Insertion part only

ENITY 3R-FXS12D
