Đặc điểm

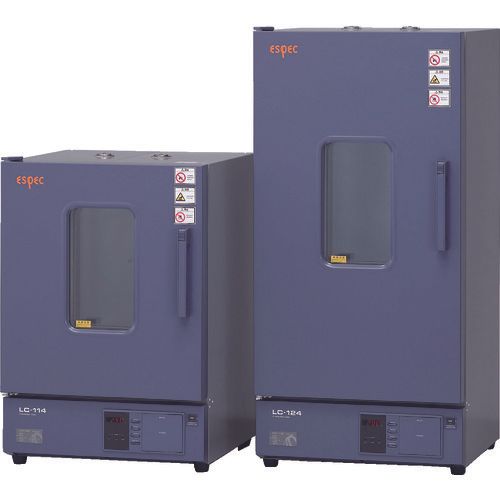

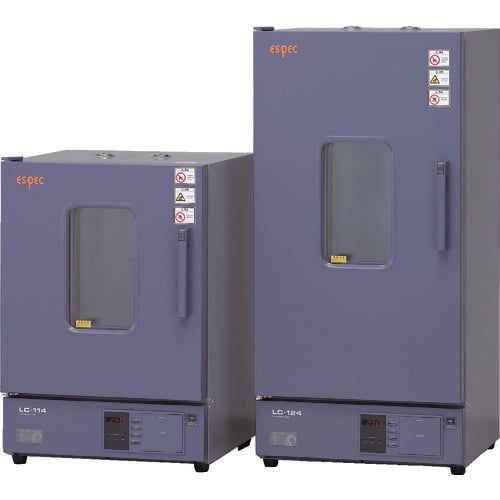

• This is a hot air circulation oven that uses a sirocco fan to smoothly circulate the air inside the oven.
• Featuring a PID-controlled temperature controller that automatically and precisely controls the temperature simply by setting the desired temperature, as well as an automatic over-temperature protection circuit, this device dramatically improves ease of use and safety.

Ứng dụng

• For drying and heat treatment.

Thông số chi tiết

• Hot air circulation type
• Temperature control method: PID control
• Power cord length: Approx. 2m
• Power supply (V): Single phase 200
• Internal volume (L): 165
• Body dimensions (mm) Width: 600
• Body dimensions (mm) Depth: 590
• Body dimensions (mm) Height: 1250
• Effective internal dimensions (mm) Width: 450
• Effective internal dimensions (mm) Depth: 450
• Effective internal dimensions (mm) Height: 820
• Operating temperature range (°C): Room temperature +20 to 250
• Safety devices: Leakage circuit breaker, thermal fuse, over-temperature protection device, upper temperature alarm device, SSR overload short circuit protection circuit breaker, burnout detection circuit
• Operating ambient temperature range (°C): +5 to +35

ESPEC LC-224
