MADE IN JAPAN

Đặc điểm

• This horizontal perfect oven is a globally recognized constant temperature chamber, widely used in high-temperature testing, heat treatment and drying on production lines, and more.
• The standard instrumentation allows for programmed operation (registration of 2 steps and 1 pattern) with settings such as constant-value operation mode and automatic start/stop.
• It employs an interactive setup method that makes configuration easy. Both the display and setting input use kana and alphanumeric characters.

Ứng dụng

• High-temperature testing, heat treatment, and drying.

Thông số chi tiết

• Forced hot air circulation/ventilation system.
• Operating ambient conditions: Temperature 0-40°C, Humidity up to 75%RH.
• Power cord length: Approx. 2m.
• Power supply (V): Single-phase 200.
• Internal volume (L): 91. Main unit dimensions (mm)
• Width: 1040
• , Depth: 635
• , Height: 820.
• Effective internal dimensions (mm) Width: 450,
• Depth: 450,
• Height: 450.
• Operating temperature range (°C): (Ambient temperature + 20) to 200.
• Safety devices: Leakage circuit breaker, distribution room cover switch, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature protection device, sample power control terminal.

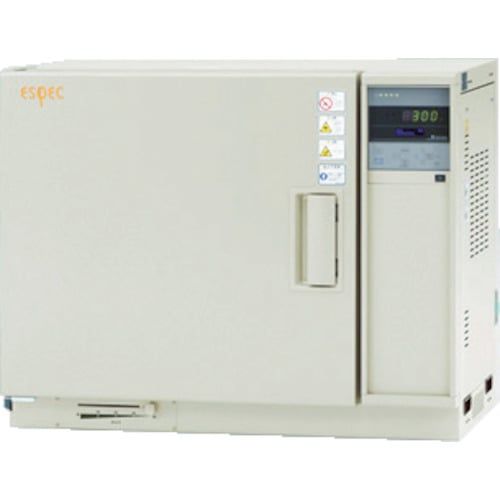

ESPEC PH-102
