MADE IN JAPAN

Đặc điểm

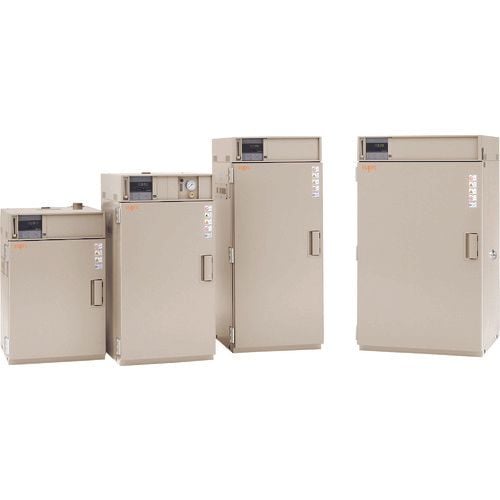

• This perfect oven is a world-class constant temperature chamber, playing an active role in a wide range of fields, including high-temperature testing and heat treatment/drying on production lines.
• The standard instrumentation allows for programmed operation (registration of 2 steps and 1 pattern) with settings such as constant-value operation mode and automatic start/stop.
• It employs an interactive setup method that makes configuration easy.
• The display and settings input also use kana and alphanumeric characters.

Ứng dụng

• For high-temperature testing, heat treatment, and drying.

Thông số chi tiết

• Forced hot air circulation/ventilation system.
• Operating ambient conditions: Temperature 0-40°C, Humidity up to 75%RH.
• Power cord length: Approx. 2m.
• Power supply (V): Three-phase 200.
• Internal volume (L): 768. Main unit dimensions (mm) Width
• Internal volume (L): 768.
• Main unit dimensions (mm) Width
• : 1030, Depth: 1145 , Height: 1800. Effective internal dimensions (mm) Width: 800, Depth: 800, Height: 1200. Operating temperature range (°C): (Ambient temperature + 20) to 200. Safety devices: Leakage circuit breaker, distribution room cover switch, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature protection device, sample power control. Terminal type: Vertical.
• : 1030, Depth: 1145
• , Height: 1800.
• Effective internal dimensions (mm) Width: 800,
• Depth: 800,
• Height: 1200.
• Operating temperature range (°C): (Ambient temperature + 20) to 200.
• Safety devices: Leakage circuit breaker, distribution room cover switch, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature protection device, sample power control. Terminal
• type: Vertical.

ESPEC PV-332
