MADE IN JAPAN

Đặc điểm

• This perfect oven is a world-class constant temperature chamber, playing an active role in a wide range of fields, including high-temperature testing and heat treatment/drying on production lines.
• The standard instrumentation allows for programmed operation (registration of 2 steps and 1 pattern) with settings such as constant-value operation mode and automatic start/stop.
• It employs an interactive setup method that makes configuration easy.
• The display and settings input also use kana and alphanumeric characters.

Ứng dụng

• For high-temperature testing, heat treatment, and drying.

Thông số chi tiết

• Forced hot air circulation/ventilation system
• Operable under ambient conditions: Temperature 0-40°C, Humidity up to 75%RH
• Power cord length: Approx. 2m
• Power supply (V): Three-phase 200
• Internal volume (L): 786
• Body dimensions (mm) Width: 1030
• Body dimensions (mm) Depth: 1145
• Body dimensions (mm) Height: 1800
• Effective internal dimensions (mm) Width: 800
• Effective internal dimensions (mm) Depth: 800
• Effective internal dimensions (mm) Height: 1200
• Operating temperature range (°C): (Ambient temperature + 20) to 300
• Safety devices: Leakage circuit breaker, distribution room cover switch, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature prevention device, sample power control terminal

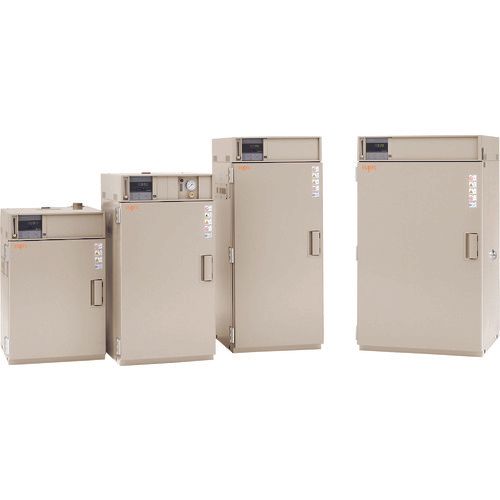

ESPEC PVH-332
