MADE IN JAPAN

Đặc điểm

• This is a constant temperature chamber with a safety door, suitable for drying and heat treating samples containing volatile solvents.
• In the event of an explosion, the building is equipped with an explosion vent that releases blast pressure from the top, as well as a door locking mechanism, ensuring safe use.
• The door Đặc điểm a one-touch locking mechanism.

Thông số chi tiết

• Forced hot air circulation/ventilation system
• Operable under ambient conditions: Temperature 0-40℃, Humidity up to 75%RH
• Power cord length: Approx. 2m
• Power supply (V): Single phase 200
• Internal volume (L): 216
• Body dimensions (mm) Width: 1190
• Body dimensions (mm) Depth: 785
• Body dimensions (mm) Height: 1370
• Effective internal dimensions (mm) Width: 600
• Effective internal dimensions (mm) Depth: 600
• Effective internal dimensions (mm) Height: 600
• Operating temperature range (℃): (Ambient temperature + 20) to 200
• Safety devices: Leakage circuit breaker, distribution room cover switch, explosion detection limit switch, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature prevention device
• Power cord length (m): Approx. 2

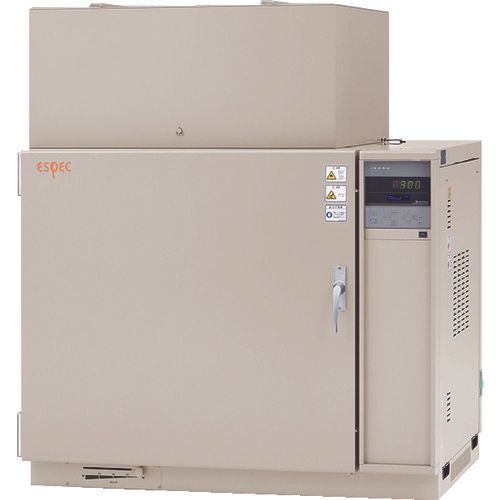

ESPEC SPH-202
