MADE IN JAPAN

Đặc điểm

• The instrument contains a frame for mounting the sample, and this frame is rotated by a rotating mechanism built into the instrument.
• Once the frame is removed, it can be used as a regular incubator.

Thông số chi tiết

• Forced hot air circulation/ventilation system
• Safety devices: Leakage circuit breaker, thermal fuse, heater wiring circuit breaker, glass tube fuse, upper and lower temperature limit alarm function, over-temperature protector
• Power cord length: Approx. 2m
• Number of samples that can be mounted: 56 per stage, up to 0.7kg (50 clips)
• Operating ambient conditions: Temperature 0-40℃, humidity up to 75%RH
• Power supply (V): Single phase 200
• Internal volume (L): 216
• Body dimensions (mm) Width: 1190
• Body dimensions (mm) Depth: 785
• Body dimensions (mm) Height: 970
• Effective internal dimensions (mm) Width: 600
• Effective internal dimensions (mm) Depth: 600
• Effective internal dimensions (mm) Height: 600
• Operating temperature range (℃): (ambient temperature + 20) to 300
• Power cord length (m): Approx. 2
• Number of sample frames: 2 stages

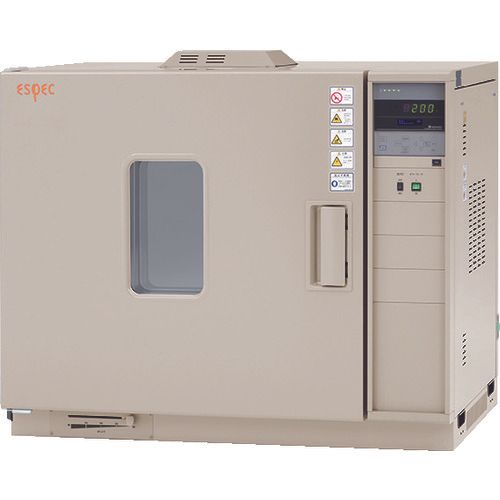

ESPEC GPHH-202
