Đặc điểm

• This benchtop-type compact high-temperature chamber is more accessible and easier for users to use, and can be installed even in limited spaces.
• Despite its compact size, it achieves high temperature distribution performance.
• The timer function, which allows you to freely set automatic start and stop times up to 99 hours and 59 minutes, is extremely convenient for nighttime and holiday testing.
• The adoption of a wired remote control allows for operation of the instrumentation remotely, providing new Đặc điểm that prioritize the user's perspective.

Ứng dụng

• For heat treatment and drying.

Thông số chi tiết

• Forced hot air circulation/ventilation system
• Power cord length: Approx. 3.5m
• Power supply (V): Single phase 100
• Internal volume (L): 28
• Body dimensions (mm) Width: 480
• Body dimensions (mm) Depth: 640
• Body dimensions (mm) Height: 435
• Effective internal dimensions (mm) Width: 360
• Effective internal dimensions (mm) Depth: 330
• Effective internal dimensions (mm) Height: 240
• Operating temperature range (°C): (Ambient temperature + 20) to 300
• Safety devices: Power supply leakage circuit breaker, SSR overload short circuit protection circuit breaker, blower temperature switch, thermal fuse
• Operating ambient temperature range (°C): +5 to +35
• Capacity (ml): 28L
• Observation window: None

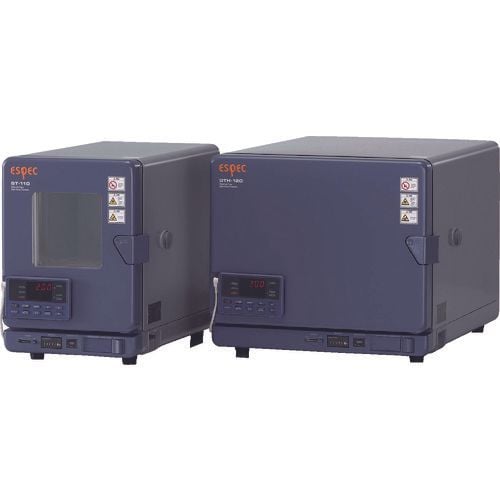

ESPEC STH-120
