MADE IN JAPAN

Đặc điểm

• Complies with JIS T 8103:2010. Measures both feet simultaneously and displays the measurement results for each foot separately.
• By downloading dedicated software, you can save the measurement results as data.
• By using a barcode reader or card reader, it is possible to manage the ID of the person taking the measurement.
• By linking with the wrist strap tester (FG-470), simultaneous measurement of footwear is possible.

Ứng dụng

• For measuring various types of antistatic and conductive shoes.
• Footwear Tester

Thông số chi tiết

• Specifications: Specifications: DC24V 50mA,
• Measurement voltage: DC20V,
• Operating environment: 0-40℃ 80%RH maximum (non-condensing),
• Width (mm): 120,
• Depth (mm): 185,
• Height (mm): 30
• , Measurement accuracy: ±5 to ±10%
• , Measurement range: Upper limit judgment 1×10Ω⁷ to 10Ω⁹, Lower limit judgment 1×10Ω⁵ to 10Ω⁶,
• External dimensions (mm): 35×25×50

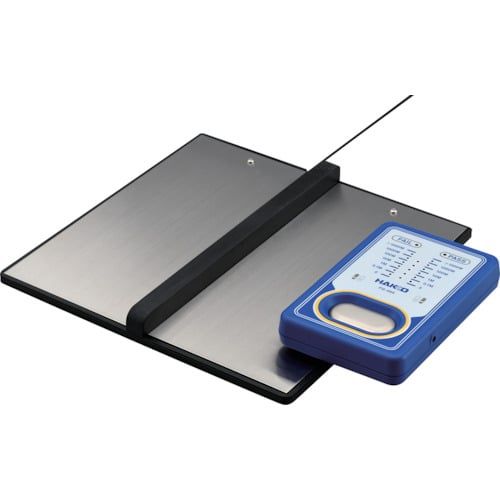

HAKKO FG465-82
