MADE IN JAPAN

Đặc điểm

• The improved, easier-to-press pad allows for more reliable assessment of the quality of the wrist strap.
• The results are indicated by highly visible LED lights and a buzzer sound.
• The banana jack is located on the front, making it easy to plug and unplug.

Ứng dụng

• Check the continuity of the wrist strap and confirm that there are no breaks in the wires.

Thông số chi tiết

• Power supply: 1 x 9V alkaline battery (sold separately) (recommended)
• Measurement range: LOW: R < 800kΩ, GOOD: 800kΩ ≤ R ≤ 9MΩ, HIGH: R > 9MΩ
• Power supply (V): 1 x 9V alkaline battery (sold separately) (recommended)
• Width (mm): 85
• Depth (mm): 90
• Height (mm): 44
• Type: Calibrated at shipment

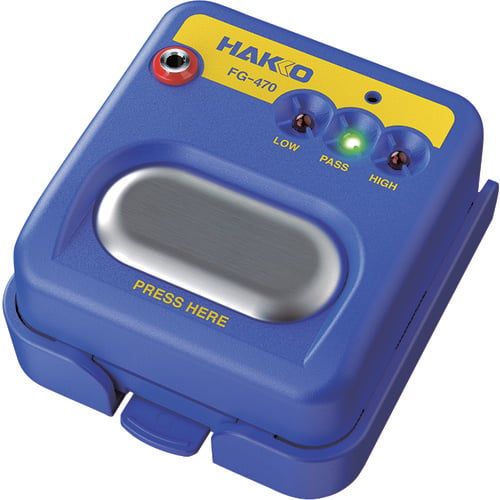

HAKKO FG470-82
