Đặc điểm

• It Đặc điểm a new triple hammer striking mechanism.
• By increasing the number of striking points from the conventional two to three, short and thin screws receive three small, rapid strikes per rotation, reducing vibration.
• It Đặc điểm a power mode that dramatically increases impact energy by automatically controlling the number of strikes under high load, skipping one hammer claw at a time to increase the hammer's travel distance.
• The high capacity of 6.0Ah has further increased the amount of work that can be done.
• It has a 4-mode switching function.
• This impact driver, which has obtained IP56 compliance certification, combines ease of use and high power in one unit, with a normal mode that improves feel and reduces cam-out through ACS control, and a power mode that generates high-speed tightening and strong tightening torque.

Ứng dụng

• For tightening and loosening small screws, self-tapping screws, wood screws, grooving screws, self-tapping screws, hex screws, etc.
• For tightening and loosening bolts, nuts, etc.
• For drilling holes in wood and other materials. (Requires a separately sold drill chuck adapter set.)

Thông số chi tiết

• Tightening capacity: Small screws M4-M8, standard bolts M5-M16, high-strength bolts M5-M14, self-tapping screws φ3.5-φ6
• Estimated work per charge: Approximately 3000 screws (φ4.0 x 50mm)
• Charging time: Approximately 30 minutes
• Brushless motor
• compatible Battery: BSL1460, BSL1450, BSL1440, BSL1430, BSL1430C, BSL1425, BSL1415
• Maximum tightening torque (N・m): 172
• No-load rotation speed (min⁻¹): 0-900 (soft mode), 0-2800 (normal mode, powerful mode, self-tapping mode)
• No-load rotation speed (min⁻¹) strong: 0-2800
• No-load rotation speed (min⁻¹) medium: 0-2800
• No-load rotation speed (min⁻¹) weak: 0-900
• Impact rate (m in⁻¹) Strong: 0-3900
• Impact rate (min⁻¹) Medium: 0-3900
• Impact rate (min⁻¹) Weak: 0-1800
• No-load rotation speed (min⁻¹) Tex: 0-2800
• Impact rate (min⁻¹) Tex: 0-1900
• Impact rate (strokes/min): 0-1800 (soft mode), 0-3900 (normal mode, power mode), 0-1900 (tex mode)
• Charging time (minutes): Approx. 30
• Color: Strong Black
• Overall dimensions (total length) (mm): 127
• Overall dimensions (total height) (mm): 241
• Body color: Strong Black
• Battery voltage (DC) (V): 14.4
• Power source: DC
• Center height (mm): 29
• Capacity Standard bolt (mm): M5-M16
• capacity High-strength bolt (mm): M5-M14
• capacity Small screw (mm): M4-M8
• capacity Self-tapping screw (mm): 3.5-6
• Hexagonal shank width across flats (mm): 6.35
• Maximum torque (N・m): 172
• Maximum torque (kgf・cm): 1754
• Impact switching: 4
• No-load rotation speed_1 Mode: Soft No- load rotation speed_1
• No-load rotation speed_1 Mode: Soft No-
• load rotation speed_1
• min-1 (rpm): 0-900 No-load rotation speed_2 Mode: Normal No- load rotation speed_2 min-1 (rpm): 0-2800 No-load rotation speed_3 Mode: Power No- load rotation speed_3 min-1 (rpm): 0-2800 No-load rotation speed_4 Mode: Self-tapping No-load rotation speed_4 min-1 (rpm): 0-2800 Impact rate_1 Mode: Soft Impact rate_1 min-1 (rpm): 0-1800 Impact rate_2 Mode: Normal Strikes_2 min-1 (strikes/min): 0-3900 Strikes_3 Mode: Power Strikes_3 min-1 (strikes/min): 0-3900 Strikes_4 Mode: Texture Strikes_4 min-1 (strikes/min): 0-1900
• min-1 (rpm): 0-900
• No-load rotation speed_2 Mode: Normal No-
• load rotation speed_2 min-1 (rpm):
• 0-2800 No-load rotation speed_3 Mode: Power No-
• load rotation speed_3 min-1 (rpm): 0-2800 No-load rotation speed_4 Mode: Self-tapping
• No-load rotation speed_4 min-1 (rpm): 0-2800
• Impact rate_1 Mode: Soft
• Impact rate_1 min-1 (rpm): 0-1800
• Impact rate_2 Mode: Normal
• Strikes_2 min-1 (strikes/min): 0-3900
• Strikes_3 Mode: Power
• Strikes_3 min-1 (strikes/min): 0-3900
• Strikes_4 Mode: Texture
• Strikes_4 min-1 (strikes/min): 0-1900

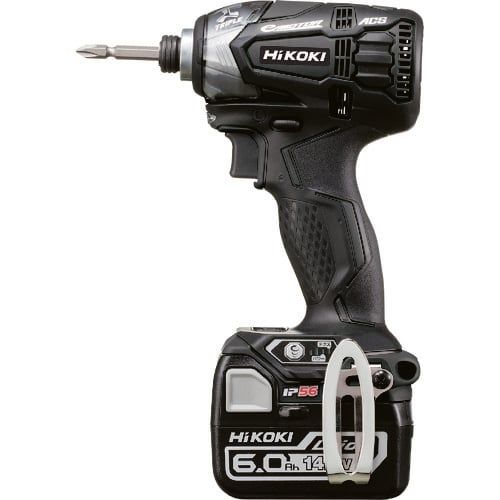

HIKOKI WH14DDL2-2LYPK-B
