MADE IN SLOVENIA

Đặc điểm

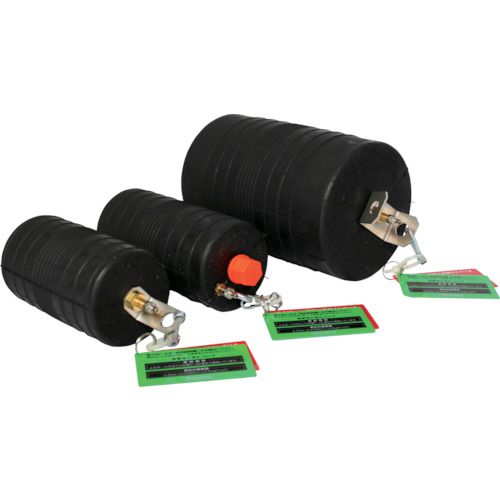

• It expands with air and seals tightly inside the pipe to stop water leaking.
• The overall length of the main body is short, making it easy to handle.
• The bypass type can be used for various tests such as watertightness tests.

Ứng dụng

• For temporary water stoppage during pipe cleaning/dredging, various surveys/tests, and repair work.

Thông số chi tiết

• Injection fitting: American valve
• short type with
• bypass Nominal
• diameter (mm): 100-150
• Length (mm): 190
• Minimum to maximum usable pipe diameter (mm): 86-153
• Maximum allowable back pressure (MPa): 0.16-0.19
• Diameter (mm): 85
• Main body injection air pressure (MPa): 0.25

HOSHIN PS100-150BA
