Đặc điểm

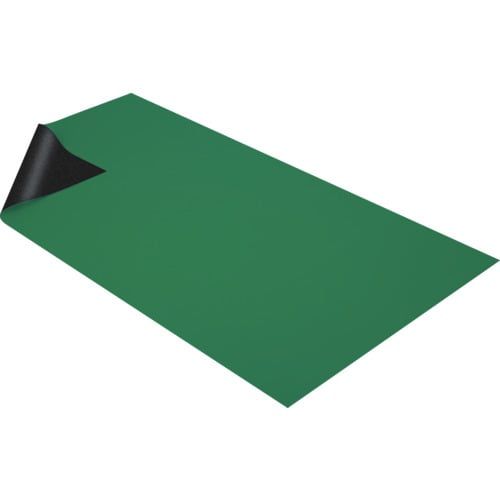

• This PVC mat complies with the RoHS directive, offers excellent abrasion resistance and UV resistance, and is a cost-effective option.
• This conductive color mat is highly durable and resistant to warping.
• It is less prone to warping and is more durable than NBR.
• Suitable for use in cleanroom environments with cleanliness class 6 (equivalent to class 1000 of the US Federal Standard 209E).* *Proven by dust generation tests conducted by Kaken Test Center. (JIS B 9923)

Note

• Ground wire is not included.
• Please purchase an F-127 or F-27 separately.

Thông số chi tiết

• RoHS compliant, abrasion-resistant, and UV-resistant PVC mat.
• Color: Green
• Width (mm): 1000
• Length (m): 1.8
• Thickness (mm): 2
• Surface resistance (Ω): 1 x 10^4 < Rp < 1 x 10^9 Ω
• Gloss: Matte
• Length (mm): 1800
• Outer dimensions W (m): 1
• Outer dimensions L (m): 1.8
• Weight (kg): 5.4
• ESD control value: 1 x 10^4 < Rp < 1 x 10^9 Ω
• Cleanliness standard: Class 6 (ISO14644-1/JIS B 9920-1) Class 1000 (US Federal Standard 209E)
• Material: PVC

HOZAN F-723
