Đặc điểm

• This mat offers excellent value for money.
• It is less prone to warping and is more durable than NBR.
• Suitable for use in cleanroom environments with cleanliness class 6 (equivalent to class 1000 of the US Federal Standard 209E).* *Proven by dust generation tests conducted by Kaken Test Center. (JIS B 9923)

Note

• Please purchase an F-127 or F-27 separately.
• Ground wire is not included.

Thông số chi tiết

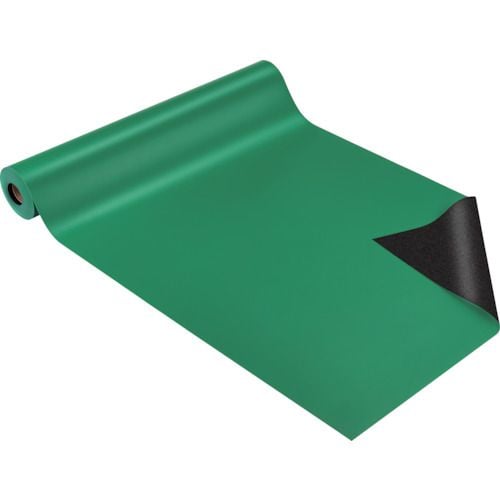

• RoHS compliant, abrasion-resistant, and UV-resistant PVC mat.
• Color: Green
• Width (mm): 1000
• Length (m): 10
• Thickness (mm): 2
• Surface resistance (Ω): 1 × 10^4 < Rp < 1 × 10^9 Ω
• Gloss: Matte
• Length (mm): 10000
• Outer dimensions W (m): 1
• Outer dimensions L (m): 10
• Weight (kg): 33
• ESD control value: 1 × 10^4 < Rp < 1 × 10^9 Ω
• Cleanliness standard: Class 6 (ISO14644-1/JIS B 9920-1) Class 1000 (US Federal Standard 209E)
• Material: PVC

HOZAN F-725
