MADE IN JAPAN

Đặc điểm

• It can be attached to a bolt with a single touch.
• Because it uses a hinge system, pipes can be temporarily placed in position.
• Height adjustment is easy when installing bolts.

Ứng dụng

• Fully threaded bolt mounting type, for single-sided suspension.

Thông số chi tiết

• Allowable static load: 196N (20kgf)
• H (mm): 80
• Suitable pipe size Neo Drain Pipe: NDD-20N
• Suitable pipe size VP pipe: 30
• Suitable pipe size Coated copper pipe 10mm: 19.05
• Suitable pipe size Coated copper pipe 20mm: -
• L1 (mm): 75
• L2 (mm): 63
• A (mm): 38
• Body material thickness (mm): 1.2
• Lid material thickness (mm): 1.0
• Suitable pipe size VP pipe size + insulation material 10mm (PMQ): VP13 + (PMQ-13)

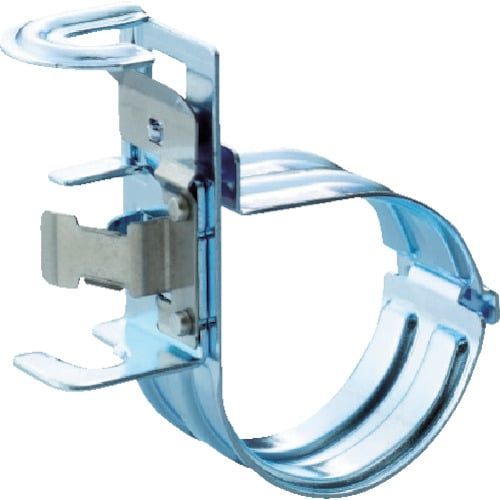

INABA SRS-30
