MADE IN JAPAN

Đặc điểm

• It can be attached to a bolt with a single touch.
• Because it uses a hinge system, pipes can be temporarily placed in position.
• Height adjustment is easy when installing bolts.

Ứng dụng

• Fully threaded bolt mounting type, for single-sided suspension.

Thông số chi tiết

• Allowable static load: 196N (20kgf)
• H (mm): 85
• Compatible pipe size Neo Drain Pipe: NDD-304N
• Compatible pipe size VP pipe: 40
• Compatible pipe size Coated copper pipe 10mm: 28.58
• Compatible pipe size Coated copper pipe 20mm: 9.52
• L1 (mm): 85
• L2 (mm): 73
• A (mm): 48
• Body material thickness (mm): 1.6
• Lid material thickness (mm): 1.0
• Compatible pipe size VP pipe size + insulation material 10mm (PMQ): VP20 + (PMQ-20)

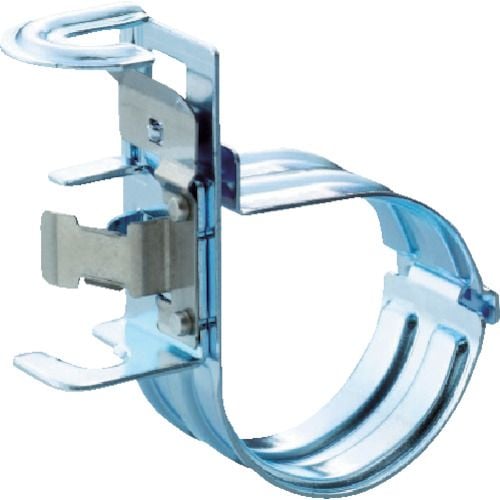

INABA SRS-40
