MADE IN JAPAN

Đặc điểm

• It can be attached to a bolt with a single touch.
• Because it uses a hinge system, pipes can be temporarily placed in position.
• Height adjustment is easy when installing bolts.

Ứng dụng

• Fully threaded bolt mounting type, for single-sided suspension.

Thông số chi tiết

• Allowable static load: 196N (20kgf)
• H (mm): 98
• Suitable pipe size 10mm coated copper pipe: 44.5
• Suitable pipe size 20mm coated copper pipe: 28.58
• L1 (mm): 105
• L2 (mm): 94
• A (mm): 68
• Body material thickness (mm): 1.6
• Lid material thickness (mm): 1.0
• Suitable pipe size VP pipe size + insulation material 10mm (PMQ): VP40 + (PMQ-40)

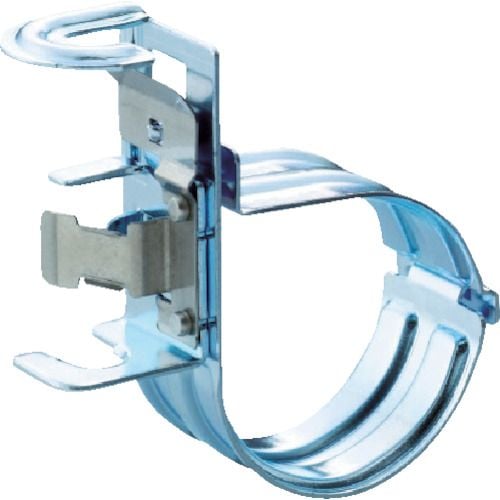

INABA SRS-60
