MADE IN JAPAN

Đặc điểm

• It employs a unique heater, making it highly versatile and suitable for a wide range of experiments.
• The use of a cylindrical half-split heater makes it easy to set up the furnace core tube.
• We can also accommodate a separate atmospheric gas specification.

Note

• Standard delivery time: Approximately 1.5 months (This standard delivery time is for the device only, without options. Delivery times may change due to holidays or high order volume, so please confirm when placing your order.)
• Nationwide shipping fee: 7,000 yen
• Shipping charges to Hokkaido, Okinawa, and remote islands will be handled on a special quote basis. A quote is required for each order.
• Additional shipping charges apply when selecting optional recorders and mounting frames. Restoration is required when selecting optional furnace core tubes and gas seal adapters (customer support is generally not available).
• A reactor core tube is required separately.

Thông số chi tiết

• Operating temperature range: 400-1100℃
• PID control with auto-tuning
• 3m grounded outlet plug Power
• supply (V): Single phase 100 (10A)
• Dimensions (mm) Width: 410
• Dimensions (mm) Depth: 282
• Dimensions (mm) Height: 495
• Heater output (kW): 0.85
• Temperature control method: Programmer (99 patterns/1024 segments)
• Cord length (m): 3
• Furnace dimensions (mm): Φ28 x 300
• Safety devices: Thermocouple breakage detection, overheat prevention meter, limit switch, leakage breaker
• Compatible tube outer diameter (mm): Φ25

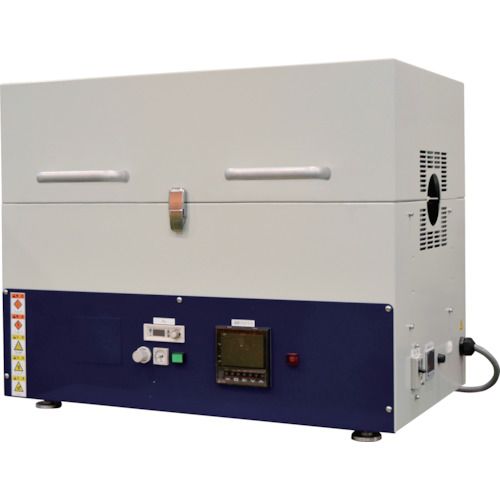

JTEKT KTF035N2
