MADE IN JAPAN

Đặc điểm

• Because it uses three thermocouples, it allows for more precise temperature control.

Note

• Standard delivery time: Approximately 2.5 months (This standard delivery time is for the device only, without options. Delivery times may change due to holidays or high order volume, so please confirm when placing your order.)
• Shipping costs vary by prefecture, so a quote is required each time.
• Shipping charges to Hokkaido, Okinawa, and remote islands will be handled on a special quote basis. A quote is required for each order.
• When selecting optional furnace core tubes or gas seal adapters, restoration is required (customer support is generally not available).
• A reactor core tube is required separately.

Thông số chi tiết

• Operating temperature range: 400-1100℃
• PID control with auto-tuning
• 3m 4-core (including ground wire), M5 ring terminal connection, ground wire M8 ring terminal connection
• Power supply (V): Three-phase 200 (30A)
• Body dimensions (mm) Width: 940
• Body dimensions (mm) Depth: 512
• Body dimensions (mm) Height: 810
• Heater output (kW): 6.0
• Temperature control method: Programmer (99 patterns/1024 segments)
• Cord length (m): 3
• Furnace dimensions (mm): Φ125 x 630
• Safety devices: Thermocouple breakage prevention, overheat prevention meter, limit switch, leakage breaker
• Compatible tube outer diameter (mm): Φ120

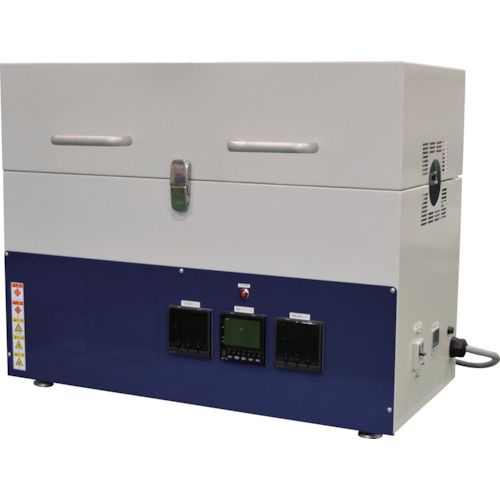

JTEKT KTF647N2
