MADE IN JAPAN

Đặc điểm

• Maximum temperature 1800℃.

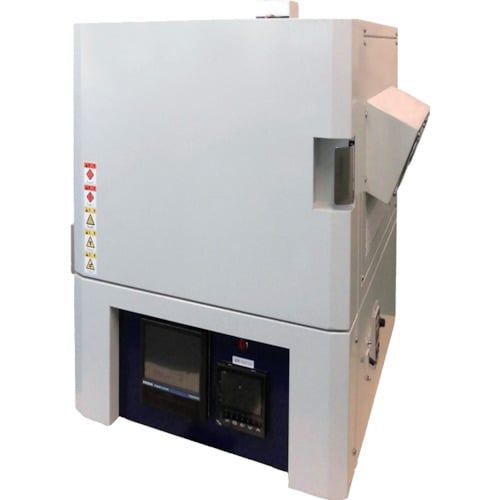

• This is a high-temperature type box furnace that employs a molybdenum disilicide heater.

Note

• Standard delivery time: Approximately 1.5 months (This standard delivery time is for the device only, without options. Delivery times may change due to holidays or high order volume, so please confirm when placing your order.)
• Shipping costs vary by prefecture, so a quote is required each time.
• Shipping charges to Hokkaido, Okinawa, and remote islands will be handled on a special quote basis. A quote is required for each order.
• When selecting optional furnace core tubes or gas seal adapters, restoration is required (customer support is generally not available).

Thông số chi tiết

• High-performance temperature programmer included as standard.
• Power cord length: 3m.
• Power supply (V): Single-phase 200 (30A). Body dimensions (mm)
• Width: 610,
• Depth: 600
• , Height: 735.
• Effective internal dimensions (mm) Width: 125,
• Depth: 155,
• Height: 120. Internal
• volume (L): 2.4.
• Heater output (kW): 3.6.
• Temperature control method: Programmer (99 patterns/1024 segments).
• Cord length (m): 3m. 3-core (including ground wire), M5 ring terminal connection, ground wire uses M8 ring terminal. Furnace
• internal dimensions (mm): 125(W) × 155(D) × 120(H).
• Safety devices: Thermocouple breakage detection, overheat prevention meter, limit switch.
• Normal operating temperature range (°C): 1000～1750

JTEKT KBF314N2-18
