MADE IN JAPAN

Đặc điểm

• Maximum temperature 1800℃.

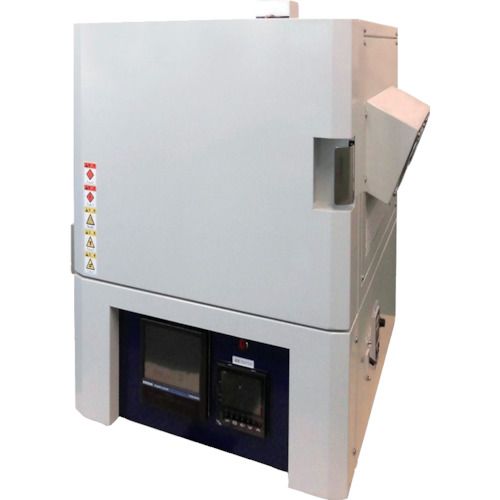

• This is a high-temperature type box furnace that employs a molybdenum disilicide heater.

Note

• Standard delivery time: Approximately 1.5 months (This standard delivery time is for the device only, without options. Delivery times may change due to holidays or high order volume, so please confirm when placing your order.)
• Shipping costs vary by prefecture, so a quote is required each time.
• Shipping charges to Hokkaido, Okinawa, and remote islands will be handled on a special quote basis. A quote is required for each order.
• When selecting optional furnace core tubes or gas seal adapters, restoration is required (customer support is generally not available).

Thông số chi tiết

• High-performance temperature programmer standard equipment
• Safety devices: Thermocouple breakage prevention, overheat prevention meter, limit switch
• Power cord length: 3m
• Power supply (V): Single phase 200 (40A)
• Body dimensions (mm) Width: 660
• Body dimensions (mm) Depth: 600
• Body dimensions (mm) Height: 775
• Effective internal dimensions (mm) Width: 215
• Effective internal dimensions (mm) Depth: 255
• Effective internal dimensions (mm) Height: 160
• Internal volume (L): 8.7
• Heater output (kW): 5.2
• Temperature control method: Programmer (99 patterns/1024 segments)
• Cord length (m): 3m 3 cores (including ground wire), M5 ring terminal connection, ground wire is M8 ring terminal connection
• Furnace internal dimensions (mm): 215 (W) × 255 (D) × 160 (H)
• Normal operating temperature range (°C): 1000 to 1750

JTEKT KBF524N2-18
