MADE IN JAPAN

Đặc điểm

• It comes with an SGK-type indicator needle. (Front view)
• The tip has a three-way chuck (made of metal), which allows you to securely hold the object being measured.
• Measurements can be taken in either the left or right direction.
• The scale markings are located on the front and side.

Ứng dụng

• Ideal for measuring and tightening minute torques in ultra-precision machinery, electronic equipment, and other applications.

Thông số chi tiết

• Minimum scale pision (cN・m): 0.2
• Overall length (mm): 134
• Torque adjustment range (cN・m): 1-15
• Measurement range (left/right) (cN・m): 1-15
• Chuckable diameter (φmm): 1-8.5
• Torque accuracy: ±6%

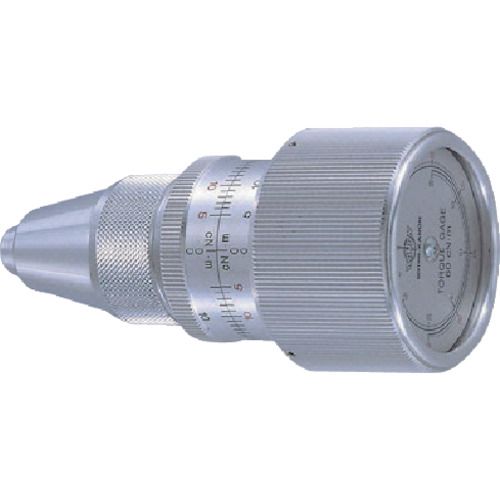

KANON CN15SGK-G
