MADE IN JAPAN

Đặc điểm

• The use of resin for the pump section and a stainless steel motor frame makes it lightweight and easy to handle.
• The use of resin and stainless steel makes it highly resistant to corrosion and ensures a long lifespan.
• This vortex-type pump offers excellent foreign object passage capabilities and also delivers high pumping performance.
• The start and stop water levels can be adjusted.

Ứng dụng

• For draining sewage, waste, and groundwater.
• For pit drainage
• For use with septic tank drainage.

Thông số chi tiết

• Liquid type: Sewage/wastewater 0-40℃
• Discharge volume (L/min): 180
• Total head (m): 16.8
• Frequency (Hz): 60
• Bore diameter (mm): 50
• Power supply (V): Three-phase 200
• Current (A): 6.5
• Output (kW): 1.5
• Overall width (mm): 642
• Overall length (mm): 340
• Overall height (mm): 253
• Power cord length (m): 6m (1.5kW and above: 10m)
• Motor: Dry submersible motor, single-phase 100V, three-phase 200V, synchronous rotation speed 3600 min-1 (Please inquire about three-phase 400V models.)

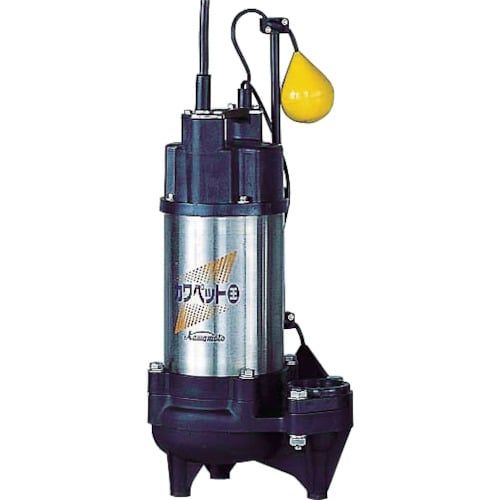

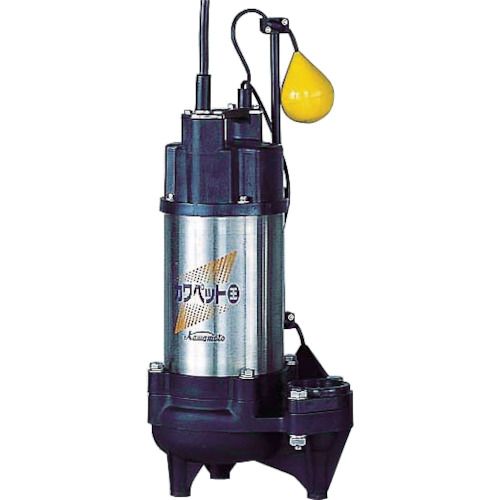

KAWAMOTO WUO-506/656-1.5LG
