MADE IN JAPAN

Đặc điểm

• Since leaks can be stopped during operation without draining the contents of the pipes, there is no need to shut down the equipment or bleed the air.
• For 50A and below, fittings without bands (flanges) are compatible. (For 65A and above, fittings can be used regardless of whether they have bands (flanges).)
• We can also repair leaks from the connection point between PVC pipes and TS fittings, as well as leaks from straight pipe sections.
• It's easy to install and tighten.
• Since it only involves tightening screws, the job can be completed in 5 to 10 minutes.
• It can prevent leaks not only in straight pipe sections but also at connections with fittings (elbows, tees, sockets, etc.).

Ứng dụng

• For emergency repairs in hotels, apartments, hospitals, factories, and other places where operations cannot be stopped.
• For emergency repairs of water or oil leaks that can be performed without stopping operation.

Thông số chi tiết

• Pressure resistance: 1 MPa
• Operating temperature range: -30 to 90°C
• Nominal diameter A: 30
• Nominal diameter B: 1 1/4
• Size (mm) L×W×H: 55×117×71
• Compatible hex wrench (mm): 8
• Nominal diameter (mm): 40.80

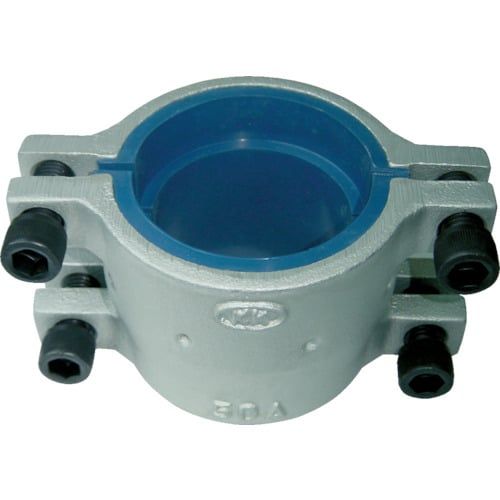

KODAMA VP30A
