MADE IN JAPAN

Đặc điểm

• Since leaks can be stopped during operation without draining the contents of the pipes, there is no need to shut down the equipment or bleed air.
• We can repair leaks from threaded sections in steel pipe fittings such as tees, elbows, and sockets, as well as pinhole leaks in straight pipe sections.
• Installation and tightening are extremely easy. Since it simply involves tightening screws, the job can be completed in 5-10 minutes. It can prevent leaks not only in straight pipe sections but also at connections with fittings (elbows, tees, sockets, etc.).

Ứng dụng

• For emergency repairs in hotels, apartments, hospitals, factories, and other places where operations cannot be stopped.
• For emergency repairs of water or oil leaks that can be performed without stopping operation.

Thông số chi tiết

• Pressure resistance: 2 MPa
• Operating temperature range: -30 to 80°C
• Nominal diameter A: 150
• Nominal diameter B: 6
• Size (mm) L×W×H: 105×308×228
• Compatible hex wrench (mm): 12
• Compatible fluid: Water, hot water, oil
• Maximum operating pressure (MPa): 2
• Pressure resistance (MPa): 2
• Operating temperature range (°C): -30 to 80

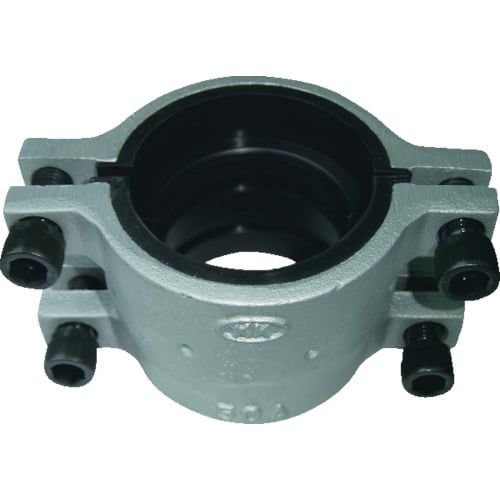

KODAMA W150A
