MADE IN JAPAN

Đặc điểm

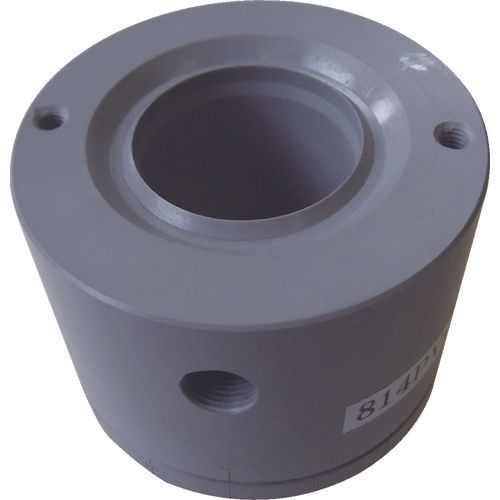

• Water draining nozzle: Air wiper.
• Pass the drain material through the center of the hollow nozzle.
• The blown air is sprayed in a cone shape towards the center of the hollow nozzle, allowing for continuous 360° drainage.
• The cross-sectional shape of the water drainage material (round or square) does not matter.
• The blow strength can be adjusted (scale adjustable).
• It can also be used as a cleaning nozzle by passing water through it.

Ứng dụng

• Blow-off water after cleaning and cooling resin, rubber molded products, steel bars, and pipes.

Thông số chi tiết

• Compatible fluid: Compressed air (compressor air)
• Nozzle mounting port: Rc1/2
• Nozzle diameter (mm): 70
• Overall length (mm): 100
• Operating air pressure (MPa): 0.29 to 0.69
• Outer diameter (mm): 140
• Minimum diameter (mm): 70
• Air consumption (NL/min) (at scale 1): 739 to 1494

KOGI 814PVC
