Đặc điểm

• By simply changing the 40mm or 50mm discharge flange, you can use it in a variety of ways.
• The direction of the outlet can be changed to directly to the side, so the hose won't kink.
• It can be used with extension cords up to 60m in length (when using cords of 1.25mm² or larger).
• It employs an SIC mechanical seal to prevent water from entering the motor.
• The impeller (blade) uses special rubber, which lasts three times longer than cast iron impellers.
• This is for wastewater.

Ứng dụng

• For emergency drainage work.
• Civil engineering works, water supply and drainage for ponds and aquariums.

Thông số chi tiết

• Non-automatic operation type
• Discharge volume (L/min): 260 (50mm) / 220 (40mm)
• Total head (m): 10
• Frequency (Hz): 50
• Bore diameter (mm): 50・40
• Power supply (V): Single-phase 100
• Current (A): 6.8
• Output (kW): 0.4
• Overall width (mm): 180
• Overall length (mm): 180
• Overall height (mm): 308
• Power cord length (m): 5

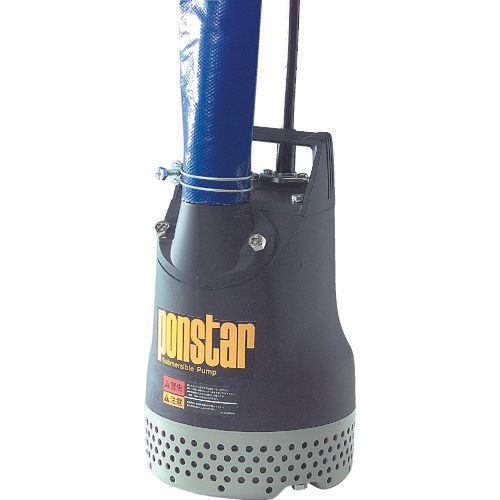

KOSHIN PX-554
