MADE IN JAPAN

Đặc điểm

• It is slim, lightweight, and Đặc điểm an energy-saving design using a DC fan.
• It supports a standard power supply (AC 100-240V single-phase power), making it easy to secure a power source. (DC power supply compatibility is also available.)
• Optional Đặc điểm include airflow adjustment, differential pressure meter, fan fault detection signal, and differential pressure signal output.
• We can also manufacture simple clean booths equipped with FFU (Fuel Filter Units).

Ứng dụng

• For cleanrooms and clean booths.
• Mechanical equipment such as semiconductor inspection equipment and cleaning equipment that require a high degree of cleanliness.

Thông số chi tiết

• Collection efficiency: 99.99% or higher (particles 0.3μm or larger)
• Power supply: AC100-240V
• Average wind speed (m/s): 0.58
• Power cord length: 2m
• Outlet wind speed (m/sec) 50/60Hz: 0.40
• Dust collection efficiency (%): 99.99
• Power supply (V): AC100-240
• Power consumption (W) (50/60Hz): 40
• Width (mm): 500
• Depth (mm): 500
• Height (mm): 152
• Air volume (m³/min): Approx. 6.0

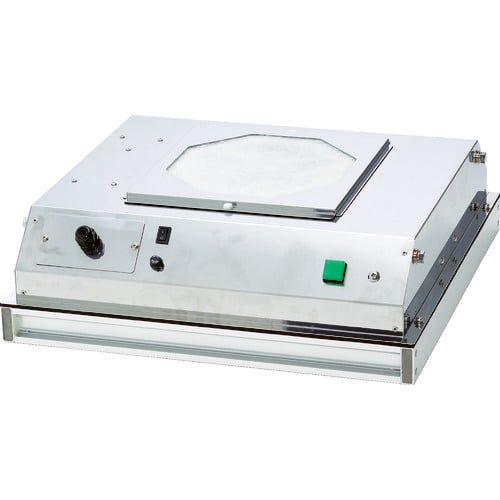

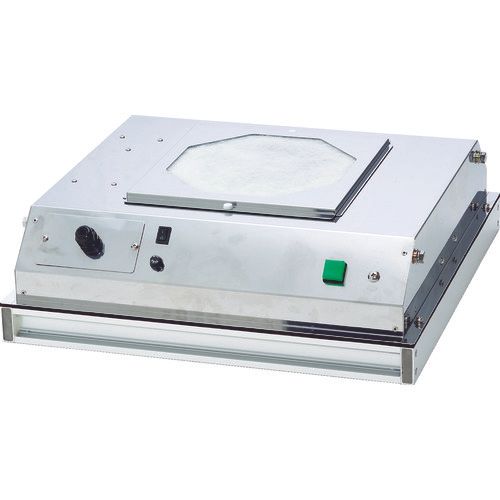

KOTOHIRA KFU2-06H
