MADE IN GERMANY

Đặc điểm

• The set includes pairs of arms of different lengths, allowing you to choose the optimal pair for your needs.
• By changing the mounting direction of the arm, it can be used for both external and internal mounting.
• The spindle tip has a reversible structure, allowing you to switch between a needle shape and a ball shape depending on the situation.
• The arm can be extended by connecting an optional extension arm.
• The arms that move in parallel allow for quick setup.
• By tightening the hexagonal bolts to secure the arm, a stable setting can be achieved.
• It can also be used for eccentric parts.

Ứng dụng

• For removing gears, bearings, pulleys, discs, etc.

Thông số chi tiết

• Suitable pulley (mm): 9-130
• Claw reach (mm): 350
• Breaking load (kN): 45
• Number of arms: 2
• Guaranteed load (t): 4.5
• Claw tip thickness (mm): 3
• Working range (mm): 9-130
• Overall width (mm): 172
• Overall height (mm): 333
• Maximum torque (Nm): 80
• Working range when gripping from the inside (mm): 95-160

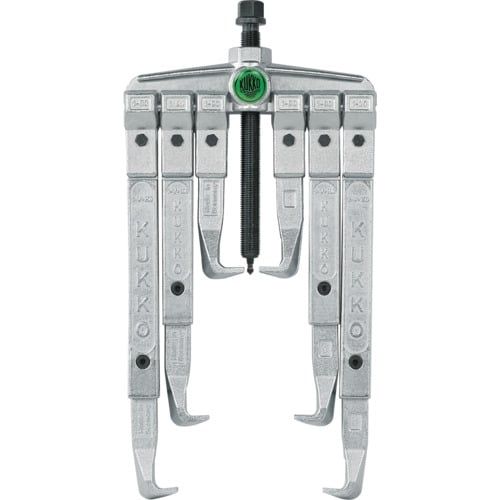

KUKKO 20-10-P3
