MADE IN JAPAN

Đặc điểm

• Its dual-Ứng dụng functionality makes it much more convenient to use and carry.
• It supports two types of terminals: insulated closed terminals and bare terminals (sleeve P and B).
• This is a built-in molding confirmation mechanism (equipped with a new ratchet mechanism) in the main unit.
• It Đặc điểm an elastomer grip that fits comfortably in the hand.
• Lightweight, compact, and pocket-sized for a comfortable grip.
• Temporarily securing the terminals can be done easily with one hand.
• The handle load for the CE5, which requires the most force, has been reduced by approximately 20% (compared to conventional products).
• The die tooth arrangement is designed for ease of use and to prevent misuse (the rows of connectors and bare terminals are separated for easy identification).
• This is a promotional item and comes with a crimping tool and rubber strap.

Ứng dụng

• Its dual-Ứng dụng functionality makes it much more convenient to use and carry.
• It supports two types of terminals: insulated closed terminals and bare terminals (sleeve P and B).
• This is a built-in molding confirmation mechanism (equipped with a new ratchet mechanism) in the main unit.
• It Đặc điểm an elastomer grip that fits comfortably in the hand.
• Lightweight, compact, and pocket-sized for a comfortable grip.
• Temporarily securing the terminals can be done easily with one hand.
• The handle load for the CE5, which requires the most force, has been reduced by approximately 20% (compared to conventional products).
• The die tooth arrangement is designed for ease of use and to prevent misuse (the rows of connectors and bare terminals are separated for easy identification).

Thông số chi tiết

• Insulated closed-end connectors / Bare crimp terminals and bare crimp sleeves
• Total length (mm): 214
• Crimp terminals: Insulated crimp terminals and sleeves, bare crimp terminals and bare crimp sleeves (P, B)
• Crimp terminals (mm²) for bare terminals: 1.25, 2
• Crimp terminals (mm²) for insulated closed-end connectors: CE1, 2, 5
• Crimp terminals (mm²) for insulated closed terminals: CE1, 2, 5

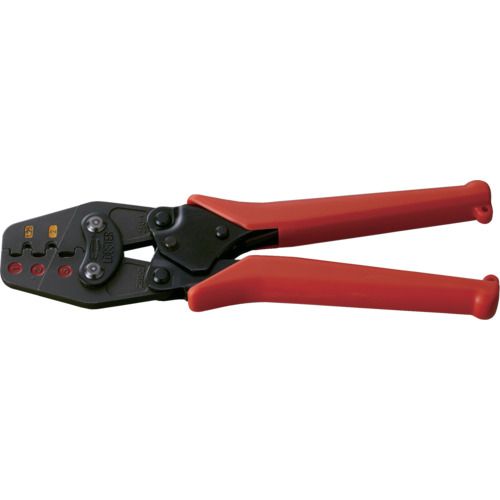

LOBSTER AKM1-CP
